IP66 LED 800W Frame Spot Light

This IP66 moving head fixture is equipped with a 700W high-output LED engine and supports both standard and high-CRI modes (Ra ≥75 / ≥90), delivering strong beam performance with accurate color reproduction. A wide 4°–45° motorized zoom and CMY continuous mixing system provide flexible beam shaping and smooth color transitions for professional stage and outdoor applications. The fixture integrates a complete effects system including fixed and rotating gobo wheels, 3-facet prism, motorized focus, frost and CRI enhancement filters, and a precision 4-blade framing shutter system. With 16-bit pan/tilt movement, flicker-free dimming, and advanced optical control, it ensures stable and precise performance for touring, concerts, and large-scale installations.

Light Source：700W LED Color Temperature: 7000K
Beam Aperture: 138mm
CRI: Standard mode Ra≥75, High CRI mode Ra≥90
Lifespan: ≥20,000 hours
Zoom Range: 4°–45°
Horizontal Scan: 540°with advanced magneto-electric positioning system, 16-bit resolution
Vertical Scan: 270°with advanced magneto-electric positioning system, 16-bit resolution
Color System: 1 color wheel (6 colors + white) Mixing System: CMY continuous mixing
CTO: Adjustable 3200K–8000K
Fixed Gobos: 1 fixed gobo wheel with 8 static patterns + dynamic flame effect
Rotating Gobos: 1 rotating gobo wheel with 7 interchangeable glass patterns
Shutter System: 4-framed precision shutter system, rotatable up to 90°
Prism: 3-facet prism, reversible rotation with adjustable speed
Focus: Motorized focus
Frost/Diffusion: 1 independent frost filter + 1 CRI enhancement filter
Strobe: 0–20Hz, optional random strobe and pulse strobe
Dimming: 0–100% linear dimming
Control Modes: DMX512, standalone, sound-activated, RDM
Channels: 38/40CH
Display: Touch control interface showing temperature and LED brightness
Input Voltage: AC 90–240V, 50/60Hz
Power Connector: Neutrik power CON or 16A waterproof socket (optional)
Signal Connector: Neutrik XLR or 3-pin waterproof signal connector
Power Consumption: 850W
Power Factor: 0.85
Operating Environment: -20°C to 45°C
Dimensions: 41.5*24*76.6 cm
Net Weight: 28 kg
Housing: Magnesium alloy casing with black outdoor-grade paint
Cooling System: Ultra-quiet forced-air cooling + magnesium alloy body + copper heat pipe radiator
Protection Rating: IP66

JY-380W IP66 Waterproof Beam Moving Head

The JY-380W Waterproof Beam Moving Head is designed for high-output outdoor stage and event applications. Equipped with a 380W Japanese Phoenix light source and a narrow 1.6°–2.0° beam, it delivers a concentrated beam with strong projection. The fixture combines color and gobo effects, dual prisms, electronic focus, and 16/20-channel DMX512 control. Its die-cast aluminum and magnesium-alloy housing, intelligent thermal management, and IP66 protection provide reliable operation in demanding outdoor environments.

Voltage: Wide voltage 110 V-240V 50-60Hz
Light Source: Japanese Phoenix 380W
Light source color temperature: 7900 K
Output lens diameter 160 mm
Total Power: 500 W
Color: Italian imported color pure: 14 + 1 white light
Patterns: Pattern Plate: 13 Fixed Patterns + 1 White Light
Prisms: 1 Prism: 8 and 2 Prisms - 24 Prisms, which can be independently positively reversed + vapourized
Focusing: Electronic linear high-definition motion focusing, using high-density glass optical lens.
Linear tuning curve: 0% -100% Linear Tuning
Strobe: 1-25 Hz fast strobe per second, with pulse strobe, synchronous asynchronous strobe effect
Beams angle: 1.6 ° - 2.0 °
Channels: 16 / 20 international standard DMX512 channels.
System Heating: The light bulbs are heated with a fully closed copper tube heat sink, thereby ensuring the waterproof and heat dissipation of high-powered light bulbs.
Intelligent temperature monitoring technology automatically adjusts the heat dissipation system and effectively controls the temperature of the lamp.
Dehumidification system: Smart dehumidification system, air pressure compensation design, effectively guarantee the life of the lamp.
Modular design: From production to assembly, replacing accessories is better and more reasonable
XY motor: three electric drive, powerful, faster, more stable, more silent.
Light fixture materials: use national standard die-cast aluminum and die-cast Mg alloy high-end material casings! There is no plastic, and it can be used in harsh outdoor environments such as rain, high altitude, large wind sand, the seaside, cold and hot.
Waterproofing Level: Withstand 360 ° waves without dead angle, truly achieve waterproofing level ip66
Control mode: DMX512, self-walking, master-slave self-walking
Prisms: 8 Prisms can rotate, macro function
Lamp body size: 705 * 375 * 300 mm
Net weight: 25KG
Package size: 750 * 440 * 460 mm
Gross weight: 27KG

IP65 19x40W Bee Eye Zoom Wash Moving Head

This IP65 moving head fixture features 19 × 40W RGBW LEDs with a wide 4.5°–40° zoom range, delivering both high-intensity beam output and smooth wash effects. With advanced pixel control and built-in macro effects such as vortex, kaleidoscope, and waist-style patterns, it provides strong visual creativity for stage and event applications. The fixture supports RGBW color mixing, 2500K–9000K color temperature adjustment, and linear electronic focus, ensuring flexible performance from sharp beam to soft wash. With DMX, Art-Net, sound active, and standalone modes, it is designed for concerts, touring shows, TV productions, and architectural lighting projects requiring dynamic and reliable lighting effects. Fan heat dissipation and temperature automatic detection function, the system will automatically stop working to protect the lamp when the temperature is too high

Light source：19 high brightness LED beads of 40 watts (four in one RGBW)
Color temperature：2500-9000K
Average life：≥50000 hours
Zoom range：4.5°~40°
Horizontal Scanning：540°
Horizontal vertical：250°
Control mode: Pixel control, preset multiple macro effects,with vortex, kaleidoscope, and waist effects
Color system：RGBW color mixing
Focus： linear electronic focus
Strobe：0~20Hz, optional random strobe and pulse strobe
Dimming：0-100% linear adjustment
Control mode：Artnet/DMX/Artnet+DMX/self walk 1 /self walk 2/sound control
Channel mode：21CH/23CH/35CH/78CH/92CH/97CH/99CH
Display：Touch control interface, which can remotely control the bulb switch function and display fan speed and bulb usage time
Voltage：AC90~240V，50/60Hz
Power connection：waterproof power input
Signal connection：three-core or five-core waterproof XLR plug
Input Power：760W，PF≥0.95
Environmental temperature：-20℃~45℃
Size：65*37*54cm
N.W.：17.5kg
Shell : aluminum plate + plastic shell + tempered glass
Cooling system: fan cooling + radiator, full temperature monitoring, automatic over-temperature protection
IP rating：IP65

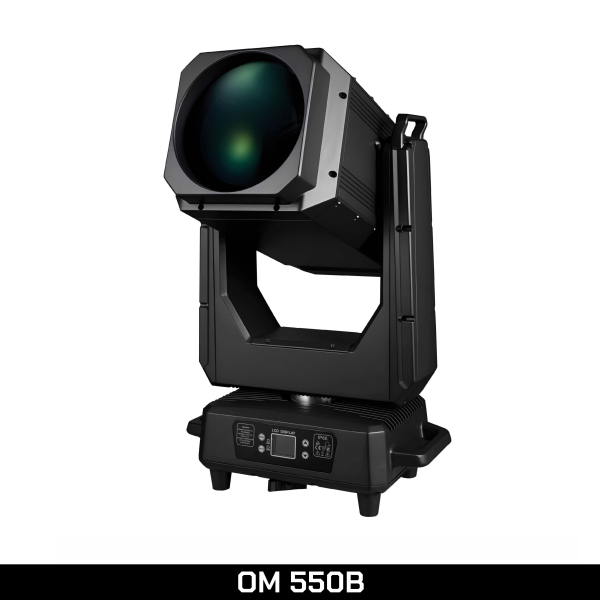

IP550 Super Beam CMY

This IP66 moving head beam fixture is equipped with a Ushio 520W long-life HID lamp, delivering extremely high output with a narrow 1.5° beam angle and up to 355,000 lux at 15m. Designed for long-throw applications, it provides strong aerial effects for concerts, large-scale events, and outdoor installations. The fixture features 16-bit precision pan (540°) and tilt (270°), a comprehensive color and gobo system, multiple prism effects, and motorized focus for flexible beam shaping. With DMX512, RDM, and multiple control modes, it offers stable and reliable performance for professional touring and stage lighting environments.

Optics:
Light Source: Ushio 520W Long-Life Professional Stage HID Light
Color Temperature: 7000K
Output Aperture: 200mm
Illuminance: 355000Lux@15m Distance
Light Source Lifespan: 3000 hours (data provided by the light source manufacturer)
Beam Angle: 1.5°
Effect:
Horizontal Scan: 540°, magnetoelectric positioning, 16-bit precision scanning
Vertical Scan: 270°, magnetoelectric positioning, 16-bit precision scanning
Color System: 1 color wheel, 14 colors plus white light
Gobo System: 1 fixed gobo disc, 17 gobos plus white circles
Focusing: Motorized focusing
Fog: Independent fogging、
Strobe: 0-20Hz, selectable random strobe and pulse strobe
Dimming: 0-100% strobe plate dimming
Prism: 1 x 6-row prism, 1 x 8+16 double-layer prism, 1 x 8 prism, bidirectional rotating and stackable
Control:
Control Method: DMX512, RDM，master-slave, voice control，manual adjustment
Channels: 24/27CH
Display：Touch control interface, which can remotely control the bulb switch
function and display fan speed and bulb usage time
Power supply:
Input voltage and frequency: 90~240V, 50/60Hz
Power Connection: Waterproof Seetronic power input/output socket
Signal Connection: Three-pin waterproof Seetronic signal input/output socket
Total Power: 650W
Power factor: 0.95
Operating Environment: -20℃～45℃
Physical characteristics:
Size:41.5*24.1*74.5CM
Weight：30kg
Casing: Magnesium-aluminum alloy casing, lightweight, high temperature resistant, salt spray resistant, corrosion resistant
Cooling System: Copper pipe heat conduction + waterproof silent fan
Protection Rating: IP66
Standard configuration: folding integrated hook, power cable 1PC, DMX cable 1PC, safety rope 1PC

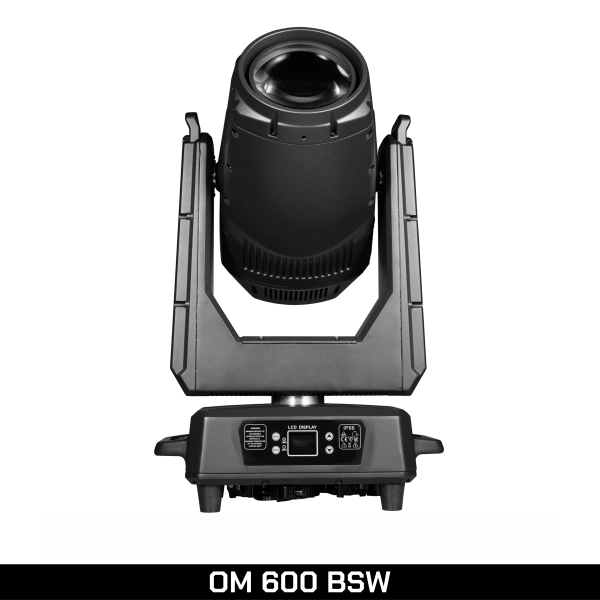

IP66 LED600W BWS CMY

This IP66 moving head fixture features a 600W high-power LED module with CMY color mixing and a 4°–36° motorized zoom, delivering strong beam performance and flexible wash effects for professional stage and outdoor applications. It includes a complete optical system with fixed and rotating gobo wheels, dual prism effects, motorized focus, and an independent fog lens, providing rich projection and aerial effects. With 16-bit pan/tilt movement, flicker-free dimming, and 0–20Hz strobe, the fixture ensures smooth and stable performance. Supporting DMX512, RDM, sound active, and standalone modes, it is designed for concerts, touring productions, and large-scale installations requiring reliable output and versatile beam shaping.

Light source: 600WLED module, Light source life: ≥20000 hours
Color temperature: 8000K
Light output diameter: 138mm
Illuminance: 28000Lux@10m (4°)
Zoom range: 4-36 degrees
Horizontal scanning: 540°, using advanced magneto-electric positioning system, 16-bit scanning
Vertical scanning: 270°, using advanced magneto-electric positioning system, 16-bit scanning
Color system: 1 color wheel, 8 colors
Color mixing system: CMY infinite color mixing
CTO color temperature: 3200-8000K adjustable
Fixed gobo: 1 fixed gobo plate, 11 gobos
Rotating gobo: 1 rotatable gobo plate, 8 pluggable gobos
Prism: 1 8-prism, 1 6-row mirror, can be superimposed and rotated independently
Focus: electric focus
Fog: independent fogging lens, light transmittance greater than 90%
Frequency Flash: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, voice control, RDM
Channel: 23CH
Display: touch control interface, display temperature, lamp brightness
Input voltage: AC90-240V, 50/60 Hz
Power connection: waterproof power connector input/output
Signal connection: three-core or five-core waterproof XLR socket
Total power:650W, Power factor: 0.85
Working environment: -20℃～45℃
Dimensions: 41.5*24*70.6cm
Net weight: 23kg
Shell: magnesium alloy shell, black outdoor paint
Cooling system: air cooling + die-cast magnesium alloy, full temperature monitoring, automatic over-temperature protection
Protection level: IP66

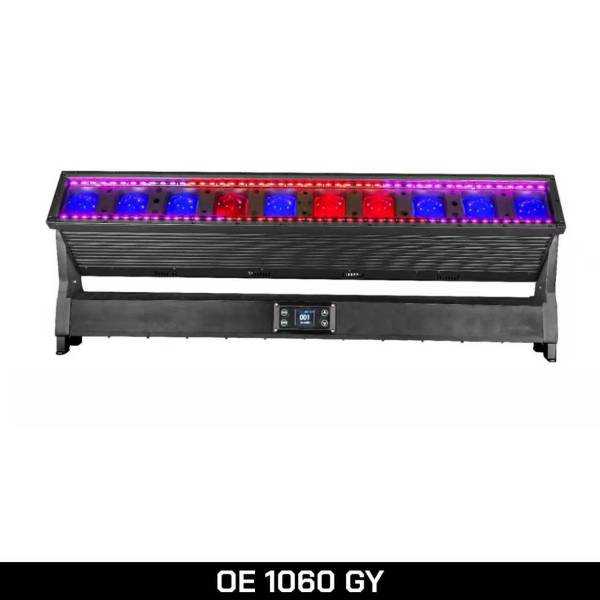

IP65 Rattlesnake RGBW Moving Head

The IP65 Rattlesnake RGBW Moving Head is an 800W outdoor fixture combining a 10×60W RGBW main light source with dedicated cool-white, warm-white, and RGB LED sections. Its 2.8–31° beam zoom and 5–46° spot zoom provide flexible coverage, while RGBW+CW+WW color mixing enables precise color and CCT control from 2700–8000K. With IP65 protection, RDM, and optional Art-Net/sACN, it is built for concerts, festivals, touring, and outdoor productions.

Light source：10*60W RGBW LED，96*3W CW LED，
96*3W WW LED ，96*0.5W RGB LED
Color temperature：2700K～8000K
Average life：≥20000 hours
Illuminance：24000 Lux@3m（3°）
Beam angle：2.8°-31°
Spot angle：5°-46°
Y-axis movement angle：202°
Total light output：60000 lm (instantaneous flicker)
Color rendering index：WW: ≥90
Color：RGBW+CW+WW mixed color
Strobe：0~20Hz, optional random strobe and pulse strobe
Dimming：0-100% linear adjustment
Control mode：DMX512 、RDM 、(Art-Net 、sACN Optional）
Channel mode：17/27/99/108/168/170CH
Voltage：AC90~240V，50/60Hz
Power connection: 3pin waterproof docking power cable
Signal connection: 3pin waterproof docking DMX cable
Input Power：800W，PF≥0.95
Environmental temperature：-20℃~45℃
Size：52*20*28cm
N.W.：31.3kg
Shell：Die-cast aluminum + high-strength tempered glass
Cooling system：Low-noise fan forced ventilation
IP rating：IP65

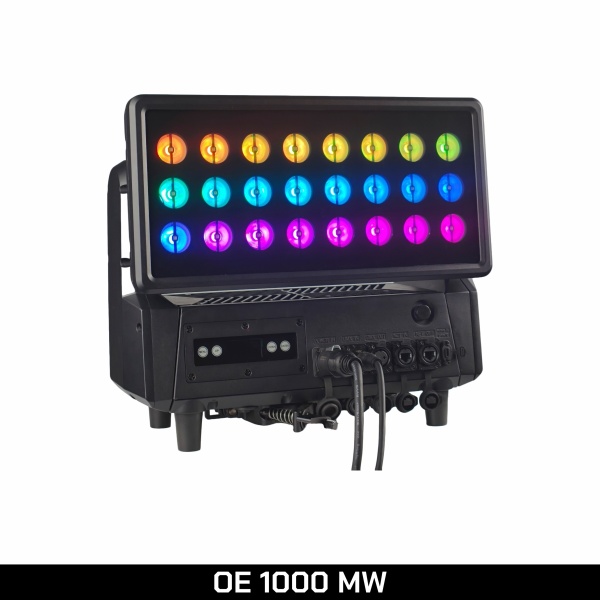

IP65 Color Strike V

The 1000W IP65 RGBW Pixel Wash Moving Head combines a 24×40W main LED matrix with 24×6W auxiliary RGBW LEDs for flexible pixel-controlled lighting effects. Both LED sections can be controlled individually, with multiple beam configurations from 12° to 110° and electronic frost options for wider coverage. Supporting DMX512, Art-Net and RDM, it is designed for touring, concerts, festivals, and demanding outdoor productions.

Power Voltage: AC 100-240V,50/60Hz
Power Consumption: 1000W
Light Sources: TX high quality 4in1 RGBW 5060 40W*24pcs +
24pcs*6W RGBW 4in1 LEDs
Pixel matrix: Main LED and Auxiliary LED both can be control individually
CRI: Ra≥80
Color Temperature：2800-8000K
Light source life: 50000 hours
Beam Angle: Main LED 12°
Main LED with E-frost 48°
5
Auxiliary LED 110°
Auxiliary LED with E-frost 106°
Combined 12°
Combined with E-frost 50°
Dimmer: 0-100% linear dimmer
Strobe：0.5-25 times/second and random strobe
Control
DMX Channel: 314/222/29/30/288/240/192/144/144/120/96/72
Protocol: Art-Net, DMX-512, RDM
Display: Illuminated graphic LCD
RDM: Bidirectional communication
Cooling: Temperature controlled, overheating protection
Construction
DMX In/Out socket: Seetronic 3-pin XLR waterproof in/out
Power Socket: Seetronic Waterproof powercon in/out
Art-Net: Seetronic waterproof Art-net in/out
Housing: Die-casting aluminum body housing
PHYSICAL
Protection Rating: IP65
Product Size:404*202*350MM
Weight: 15Kgs
Packing Size Carton: 490*240*420MM
Packing Weight:16.5Kgs

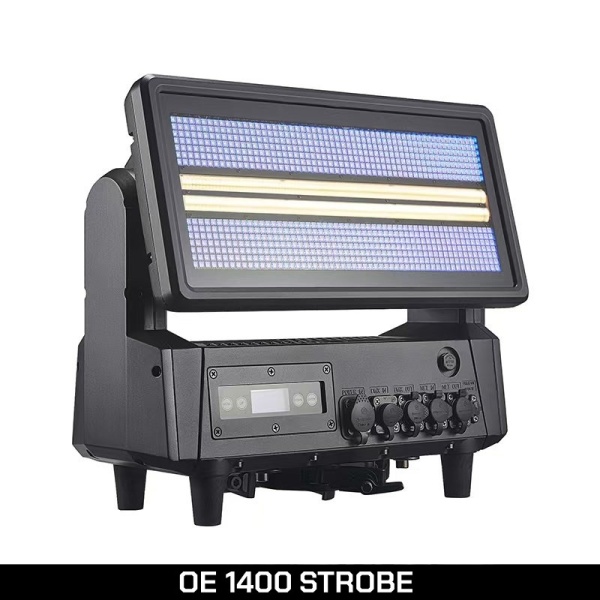

IP65 RGBW Moving Head Strobe

The IP65 RGBW Moving Head Strobe is a high-power outdoor strobe fixture combining 784 RGB LEDs with 392 high-output white LEDs for dynamic color, pixel, and strobe effects. Its 2700–8000K color range, flicker-free 16-bit dimming, and 0.3–25Hz strobe provide flexible visual control. With 220° tilt movement, intelligent positioning, IP65 protection, and DMX512, RDM, and Art-Net support, it is designed for concerts, festivals, touring, and outdoor productions.

Power
Input Voltage: AC 90–240V, 50/60Hz
Power Consumption: 1400W
Power Factor: ≥0.95
Light Source
RGB: 784 × 0.5W LEDs
White: 392 × 3W LEDs
Lifespan: ≥50,000 hours
Color & Effects
RGB + White mixed color system
Color Control: 14-segment RGB / 28-segment white
Color Temperature: 2700K–8000K
Dimming: 0–100% linear (gamma adjustable, flicker-free)
Strobe: 0.3–25 Hz
Movement
Tilt: 220° (16-bit precision)
High-speed silent motor with auto repositioning
Optical electromagnetic positioning system
Control
DMX512 / RDM / Art-Net
Channel modes: 7 / 8 / 11 / 13 / 24 / 30 / 74 / 97CH
Construction
IP Rating: IP65
Housing: Die-cast aluminum + tempered glass
Cooling: Intelligent temperature-controlled fan system
Physical
Size: 404 × 202 × 350 mm
Net Weight: 15 kg
Gross Weight: 17 kg
Connectivity
Power In/Out (linkable: 230V ×2 units / 120V ×1 unit)
DMX In/Out (up to 30 units daisy chain)
Seetronic waterproof connectors

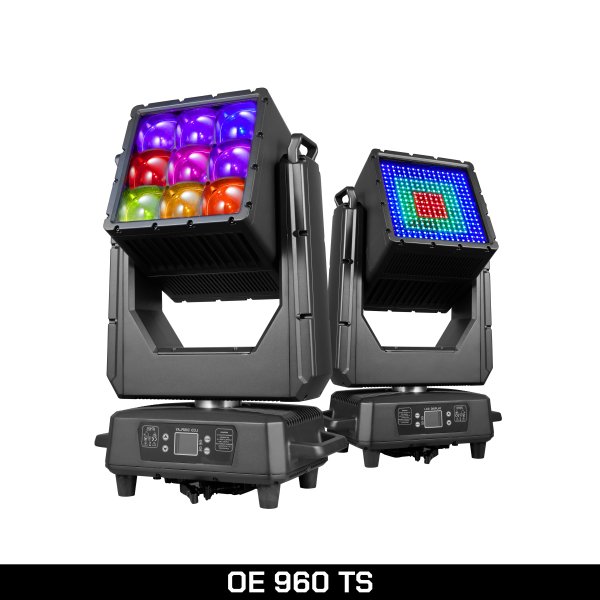

Dual-Sided Flying Man IP66 Moving Head

The Dual-Sided Flying Man is an 800W outdoor moving head combining a powerful RGBW beam/wash section with a high-density pixel strobe section. Its 9×60W RGBW LEDs provide adjustable 4–32° zoom, while the pixel-controlled strobe side combines RGB and warm-white LEDs for dynamic visual effects. With IP66 protection, infinite vertical rotation, 540° pan, and RDM control, it is designed for concerts, festivals, touring, and large-scale outdoor productions.

Light source: 9×60W LED RGBW lamp beads (beam dyeing end)
324×0.3W RGB 5050 lamp beads + 288×2W 3030WW lamp beads (pixel strobe end)
Life: ≥20,000 hours
Zoom range: 4-32°
15m illumination: 8000LX (4 degrees)
Horizontal scanning: 540 degrees, using advanced magnetoelectric positioning system, 16-bit scanning
Vertical scanning: infinite rotation, using advanced magnetoelectric positioning system, 16-bit scanning
Color system: uniform RGBW color mixing system, preset multiple macro effects
CTO color temperature: 2500K-8000K adjustable
Flash: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, sound control, master-slave, RDM
Communication Channel: 16/33/42/CH69/AH69/213CH
Display: Touch control interface, can switch between Chinese and English, display lamp temperature, etc.
Input voltage: AC90-240V, 50/60 Hz
Power connection: Seetronic power socket
Signal connection: Seetronic signal socket
Total power: 800W
Power factor: 0.85
Working environment: -20℃～45℃
Dimensions: 41.5*24*61.3cm
Net weight: 22.5kg
Shell: Magnesium alloy shell, black outdoor paint
Cooling system: Ultra-quiet air cooling + magnesium alloy body
Protection level: IP66

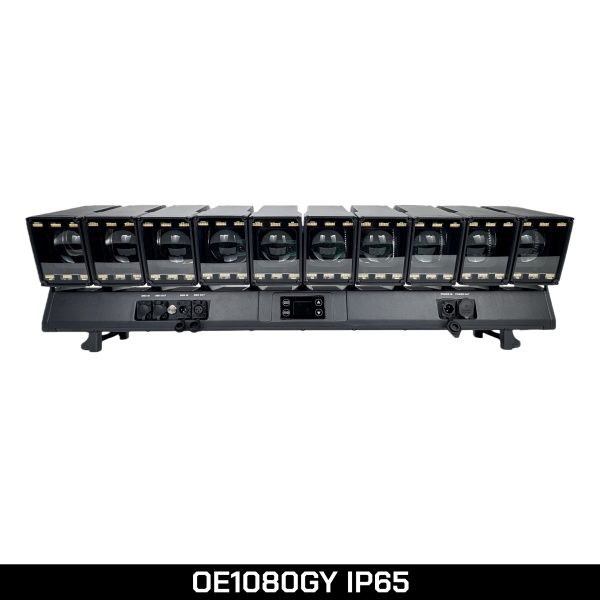

IP65 10pcs 70W waterproof Thousand Hands

This IP65 linear LED fixture combines beam, wash, and pixel oscillation effects in a single design, featuring 10 × 80W RGBW 4-in-1 LED sources with additional golden white and cool white LED arrays for rich color layering and dynamic visual effects. With 32-bit smooth dimming, 1–30 Hz strobe, and multiple DMX channel modes, the fixture provides flexible programming options for professional stage applications. Its rugged IP65-rated metal housing and wide operating temperature range ensure reliable performance for outdoor events, touring productions, and permanent installations.

Voltage: 36V 18A + 24V 15A
Power: 880W
LED beads: 10 sets of 80W four-in-one LED beads, 360 sets of 2016 golden white light LED beads, and 360 sets of 2016 cool white light LED beads
Control mode: DMX/voice control/automatic
Channels: CH29, CH56, CH144, CH216, CH262, CH282
Dimming: 32-bit 0~100% linear dimming
Features: Single-particle oscillation + staining + beam
Operating temperature: -30°C to 50°C
Stroboscopic frequency: 1~30 Hz
Appearance: Metal, Black
Connection method: DMX512 input/output / power input/output.
IP Rating: IP65
Dimensions: 1009*153*331mm
Weight: 28.46 kg

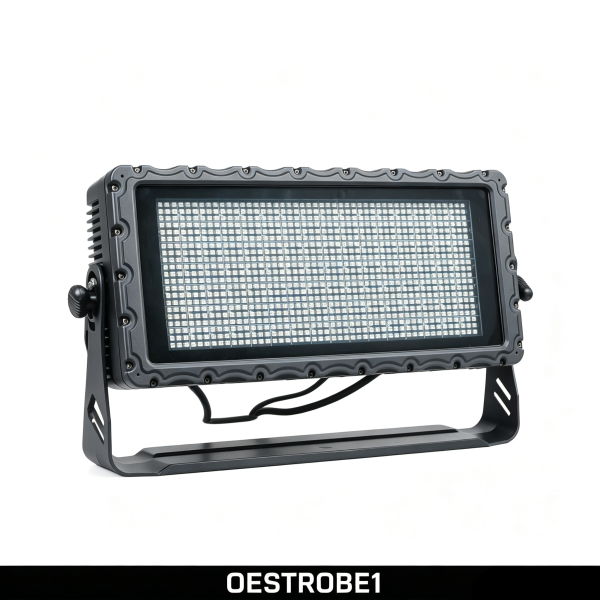

IP67 Outdoor RGBW Strobe Light

This IP67 outdoor strobe light combines high-output RGB color, white light, and fill-light functions in a rugged weatherproof design. Featuring 12-segment RGB and white LED control, it provides dynamic color, strobe, and segmented lighting effects for outdoor events and large-scale productions. With 32-bit smooth dimming, 1–30Hz strobe, and DMX512 control, it delivers flexible programming and reliable performance in demanding outdoor environments.

Voltage: AC100~240V 50/60HZ
Power: 500W
LED Chips: 12-segment - 864 (5050) RGB + 12-segment - 96 (3030) W
Control Method: DMX512, Manual, Automatic, Voice Control
Channels: CH04, CH16, CH48
Dim: 32bit 0~100% Linear Dimming
Features: Strobe + Color Diffuser + Fill Light
Operating Temperature: -30°C~50°C
Strobe Frequency: 1~30HZ
Appearance: Metal, Black
Connection: DMX512 Input/Output / Power Input/Output
IP Rating: IP67

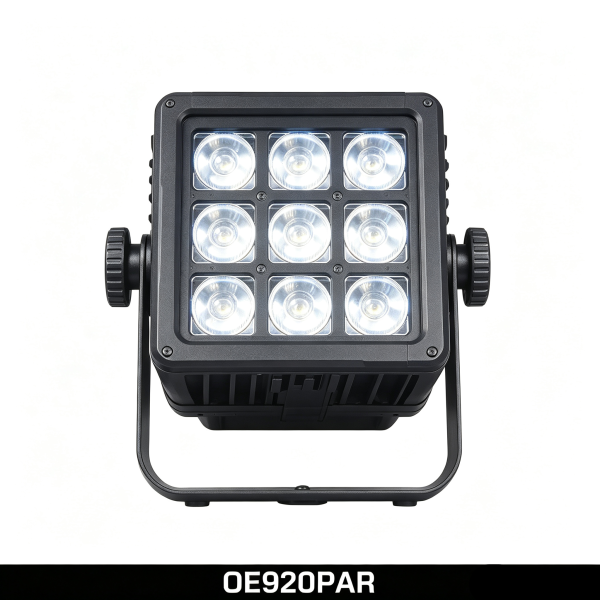

9×20W IP65 RGBW Square PAR Light

This IP65 square PAR light features 9 × 20W RGBW LEDs, delivering balanced color mixing and reliable wash performance for indoor and outdoor applications. With a 2800K–8500K color temperature range, selectable 15°/25°/40° beam angles, and independent 1–30Hz strobe, it provides flexible coverage and dynamic effects. Its high-strength die-cast aluminum housing and compact design make it suitable for outdoor events, stage wash, architectural lighting, and permanent installations.

Input Voltage: AC100-240V, 50/60HZ
Rated Power: 200W
Light Source: 9*20W RGBW
High-Speed Strobe: Independent electronic strobe, 1-30Hz
Color Temperature: 2800K-8500K
Control: DMX512 signal, auto-running, master-slave, voice-activated
Channels: 4/8/8A selectable DMX channels
Linear Dimming: 0-100%
Beam Angle: 15°/25°/40° selectable
Functions: Surface lighting, color blending, strobe
Product Appearance: High-strength die-cast aluminum alloy, streamlined design
Protection Rating: IP65
LED Lifespan: 50,000h
Operating Environment: -20℃-45℃
Net Weight: 4.829KG
Gross Weight: 5KG
Lamp Dimensions: 193×263mm×236mm (L×W×H)

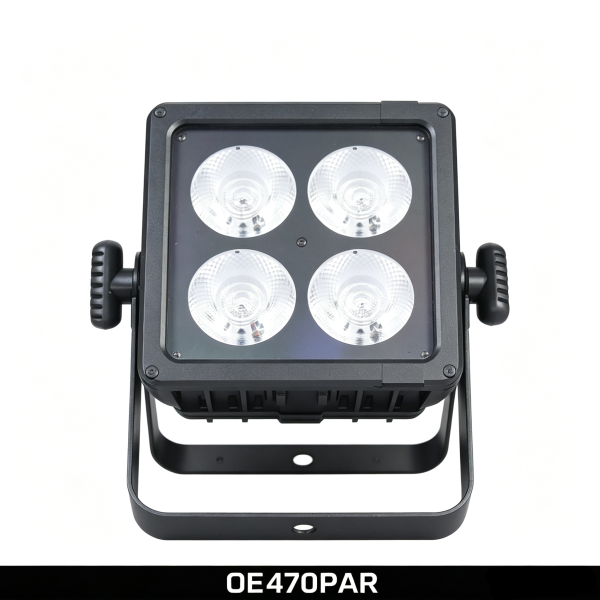

4-Eye COB IP66 PAR Light

This IP66 4-Eye COB PAR light features four 70W dual-CCT COB LEDs, delivering smooth and consistent white-light output from 2700K to 6500K. With selectable 15°/25°/40° lenses, independent dimming and 1–30Hz strobe, it provides flexible wash performance for outdoor stages, events, architectural lighting, and permanent installations. Its integrated die-cast aluminum construction, passive heat dissipation, and low-noise fan cooling provide a practical balance of durability and thermal performance.

Rated Voltage: AC100V-240V, 50/60Hz
LED Light Source: Main light 4 x 70W dual-color temperature COB LEDs
Lifespan: 50,000 hours
Waterproof Rating: IP66
Color: Color Temperature: 2700K-6500K
Control: Master/Slave DMX512 RDM function
Channels: 2/4/8/12 channels, default 12 channels (for digital display)
Power Supply: 38V-12 250W power supply
Total Power: 300W
Lens: 15/25/40 degrees selectable, acrylic material
Features:
@ Aluminum profile with self-heating, good thermal conductivity, silent 12V fan
@ Single handle, self-supporting, can be hung Can be spliced horizontally, vertically, and horizontally.
@Integrated die-cast design
@Independent electronic linear dimming 0~100%
@Independent electronic strobe 1-30Hz, can perform random strobe, pulse strobe, synchronous/asynchronous strobe
Dimensions: Net weight: 4.7KG Gross weight: 5KG
