Moving Beam Light Series

BEAM KING 380

This 380W moving head beam fixture is designed for indoor stage and entertainment use, delivering strong and focused beam output with a 2° narrow angle optical system. Equipped with a color wheel (14 colors), fixed gobo wheel (13 patterns), and multiple prism effects, it provides versatile aerial and projection effects for professional lighting applications. With 540° pan, 270° tilt, 16-bit precision movement, smooth focus and dimming, and DMX512/RDM control, the fixture ensures stable and responsive performance. Its compact design and reliable optical system make it suitable for clubs, small-to-medium stages, and touring setups where sharp beam effects are required.

LIGHT SOURCE & OPTIC
Light source: Ushio 380W (Optional Philip 420W)
Lifespan: 3500H
Color temperature: 7800K
Lens diameter: 152mm
Beam angle: 2 degrees
EFFECTS
Color wheel:14 colors + open
Gobo Wheel: 13 fixed gobos + open
Total 4 kinds of prism with rotation in both directions at variable speed
Strobe: Multiple speed strobe
Dimming: 0-100% smooth dimming
Focus: 0-100% smooth focus
CONTROL & PROGRAM
4 touch buttons
Control: DMX512/RDM
DMX Channel: 17CH
POWER SUPPLY
Input voltage: AC100-240V 50/60Hz
Consumed Power: 380W
Power connectors: PowerCon IN/OUT(optional Truecon)
DMX connectors: 3-Pin XLR IN/OUT (Optional 5Pin)
MOVEMENT
Pan: 540 degree / Tilt: 270 degrees
P/T position: Auto correction
P/T: 16bit scanning
BODY
Rate:IP20
WEIGHT & SIZE
NW: 13.2kg(Not including clamps)
Carton box 1in1:550*390*390mm/15.25KG
Flight case 2in1:690*400*770mm/54KG
Fixture size: 316.5*252.6*538.4mm(L*W*H)

100W Beam Moving Head

This compact 100W beam moving head is designed for sharp, high-intensity aerial effects in stage and entertainment applications. Equipped with an Osram light source, high-quality optical lenses, and a narrow 3° beam angle, it delivers strong projection and fast-moving beam effects from a compact housing. The fixture features a 14-color wheel, 15-pattern gobo wheel, and 16-facet prism, providing flexible effects for clubs, small stages, events, and touring applications.

DMX Channels: 15/17 channel mode
Gold LCD display, easy-to-operate and efficient optical system, powerful light output
High-quality optical lenses
Gold Input Power: AC 100~240V, 50/60Hz
Gold Power: 200W
Light Source: Osram bulb
Gold Fuse Specification: T5Amp
Beam Angle: 3°
Bulb Life: 6000 hours
9eco
Prism: 16 prisms
Gold Plate: 14 colors plus white light
Pattern: 15 patterns plus white light
Features: Small size, fast speed, strong penetration, fast flicker speed.

ALED BEAM 300

This 230W LED moving head fixture is designed for indoor stage and entertainment applications, offering a balance of beam performance and reliability in a compact design. It features a 12-color wheel with rainbow effects, a 14-pattern gobo wheel with shake and rotation functions, and dual prism effects (8-facet and 24-facet) for versatile visual projection. With 540° pan, 250° tilt, 16-bit precision movement, and smooth linear dimming, the fixture delivers stable and responsive operation for professional lighting setups. Additional protections such as intelligent cooling and lamp life management ensure reliable performance for clubs, events, and touring productions.

Power: 350W (CE,ISO9000 standard power supply)
Light source: New 230W white LED module source
Color temperature: 7500K
LED life: 50000 hours, low power consumption, energy saving and environmental protection. Pan: 540°(16bit scan) electronic correction
Tilt: 250° (16bit scan) electronic correction
Color Wheel: 12 colors + white light, with rotating rainbow effect, a six color wheel, rainbow
effect
Gobo wheel: 14 Gobo + white, with rotation and shake
Strobo: up to 13 times per second, with random,pulse function
Dimming :0-100% linear
Prism: Double prism effect, one 24 prism, one 8 prism, 2 prisms can be superimposed Forst:
0-100% linear
Special Function:
Put off shutter 5 seconds, lamp power auto reduce 35% to extend the lamp life span Fan
speed lower than 500RPM, lamp off to protect
IP Class: IP20
Overheating protection
N. W: 15KG

AM295BEAM

This 300W moving head fixture is designed for indoor stage and entertainment applications, offering reliable beam and effect performance in a compact design. It features a 13-color wheel with half-color effects, 9 fixed gobos, and dual prism effects (8-facet and 24-facet), delivering versatile visual projection options for stage lighting. With 540° pan, 270° tilt, DMX512 and RDM control, and multiple operating modes, the fixture provides smooth movement and flexible operation for small to medium-scale events, clubs, and installations where dynamic lighting effects are required.

Input voltage:AC100-240V, 50/60Hz
Power:400W
Light source:300W light
Lamp life: 400W
Color 13 colors plus white light, half-color effect, can be arbitrarily positioned
Fixed pattern: 9 fixed delicate patterns with white light, pattern jitter effect,
Prism: two Prism(8+24)
DMX512 channels
Control mode: International standard DMX 512/random mode / self-walking mode
X-axis:540degrees
Y-axis:270 degrees
With RDM functionality
Operating temperature:-10C to 45C
Protection Index: IP20

AM380BSW MINI

This professional moving head fixture is equipped with a 371W Osram long-life light source, delivering high-intensity output with a wide 3°–45° zoom range. It features advanced optical performance including precision focus, smooth electronic dimming, and frost diffusion for flexible beam shaping. The fixture integrates a comprehensive effects system with color wheel, fixed and rotating gobos, dual prism systems, and stacked prism effects, enabling rich aerial and projection effects for stage lighting applications. With 16-bit pan/tilt movement and DMX512 control, it ensures stable and precise operation. Designed for indoor stage environments, it is suitable for concerts, clubs, touring productions, and entertainment venues requiring versatile beam and effect performance.

Light Source
Light source brand: Osram (4000H long-life platinum lamp)
Light source power: 371W
Color temperature: 7000K ±500K
Power Supply
Input voltage: AC 100–240V, 50/60Hz
Rated power: 600W
Optics
Zoom range: 3°–45°
Illuminance: 784,000 lux (6m @ 3°)
Dimming: 0–100% linear dimming
Focus: Electronic focus, ultra-smooth adjustment
Strobe: 1–25 Hz, random + pulse strobe
Frost: 0–100% soft diffusion
Effects
Color wheel: 14 colors + white, half-color effect, bi-directional rainbow rotation
Fixed gobo wheel: 13 + 1 patterns
Rotating gobo wheel: 8 interchangeable gobos + white circle, with shake and indexing function
Effect wheel: 1
Prism system 1: accepts 2 different prism plates, bi-directional rotation
Prism system 2: accepts 1 prism + 1 frost plate, bi-directional rotation
Prism stacking: 16-facet and 80-facet prisms can be combined to achieve up to 96-facet effect
Control
Operating modes: DMX mode, master-slave mode
Protocol: DMX512
Channel modes: 17CH / 24CH
Pan: 540° (16-bit precision)
Tilt: 270° (16-bit precision)
Physical
Cooling system: Forced air cooling
Housing material: Plastic + metal
Protection rating: IP20
Dimensions: 350 × 270 × 600 mm
Weight: 17 kg
Operating temperature: -25°C to 40°C

Outdoor Waterproof Series

IP66 LED 800W Frame Spot Light

This IP66 moving head fixture is equipped with a 700W high-output LED engine and supports both standard and high-CRI modes (Ra ≥75 / ≥90), delivering strong beam performance with accurate color reproduction. A wide 4°–45° motorized zoom and CMY continuous mixing system provide flexible beam shaping and smooth color transitions for professional stage and outdoor applications. The fixture integrates a complete effects system including fixed and rotating gobo wheels, 3-facet prism, motorized focus, frost and CRI enhancement filters, and a precision 4-blade framing shutter system. With 16-bit pan/tilt movement, flicker-free dimming, and advanced optical control, it ensures stable and precise performance for touring, concerts, and large-scale installations.

Light Source：700W LED Color Temperature: 7000K
Beam Aperture: 138mm
CRI: Standard mode Ra≥75, High CRI mode Ra≥90
Lifespan: ≥20,000 hours
Zoom Range: 4°–45°
Horizontal Scan: 540°with advanced magneto-electric positioning system, 16-bit resolution
Vertical Scan: 270°with advanced magneto-electric positioning system, 16-bit resolution
Color System: 1 color wheel (6 colors + white) Mixing System: CMY continuous mixing
CTO: Adjustable 3200K–8000K
Fixed Gobos: 1 fixed gobo wheel with 8 static patterns + dynamic flame effect
Rotating Gobos: 1 rotating gobo wheel with 7 interchangeable glass patterns
Shutter System: 4-framed precision shutter system, rotatable up to 90°
Prism: 3-facet prism, reversible rotation with adjustable speed
Focus: Motorized focus
Frost/Diffusion: 1 independent frost filter + 1 CRI enhancement filter
Strobe: 0–20Hz, optional random strobe and pulse strobe
Dimming: 0–100% linear dimming
Control Modes: DMX512, standalone, sound-activated, RDM
Channels: 38/40CH
Display: Touch control interface showing temperature and LED brightness
Input Voltage: AC 90–240V, 50/60Hz
Power Connector: Neutrik power CON or 16A waterproof socket (optional)
Signal Connector: Neutrik XLR or 3-pin waterproof signal connector
Power Consumption: 850W
Power Factor: 0.85
Operating Environment: -20°C to 45°C
Dimensions: 41.5*24*76.6 cm
Net Weight: 28 kg
Housing: Magnesium alloy casing with black outdoor-grade paint
Cooling System: Ultra-quiet forced-air cooling + magnesium alloy body + copper heat pipe radiator
Protection Rating: IP66

JY-380W IP66 Waterproof Beam Moving Head

The JY-380W Waterproof Beam Moving Head is designed for high-output outdoor stage and event applications. Equipped with a 380W Japanese Phoenix light source and a narrow 1.6°–2.0° beam, it delivers a concentrated beam with strong projection. The fixture combines color and gobo effects, dual prisms, electronic focus, and 16/20-channel DMX512 control. Its die-cast aluminum and magnesium-alloy housing, intelligent thermal management, and IP66 protection provide reliable operation in demanding outdoor environments.

Voltage: Wide voltage 110 V-240V 50-60Hz
Light Source: Japanese Phoenix 380W
Light source color temperature: 7900 K
Output lens diameter 160 mm
Total Power: 500 W
Color: Italian imported color pure: 14 + 1 white light
Patterns: Pattern Plate: 13 Fixed Patterns + 1 White Light
Prisms: 1 Prism: 8 and 2 Prisms - 24 Prisms, which can be independently positively reversed + vapourized
Focusing: Electronic linear high-definition motion focusing, using high-density glass optical lens.
Linear tuning curve: 0% -100% Linear Tuning
Strobe: 1-25 Hz fast strobe per second, with pulse strobe, synchronous asynchronous strobe effect
Beams angle: 1.6 ° - 2.0 °
Channels: 16 / 20 international standard DMX512 channels.
System Heating: The light bulbs are heated with a fully closed copper tube heat sink, thereby ensuring the waterproof and heat dissipation of high-powered light bulbs.
Intelligent temperature monitoring technology automatically adjusts the heat dissipation system and effectively controls the temperature of the lamp.
Dehumidification system: Smart dehumidification system, air pressure compensation design, effectively guarantee the life of the lamp.
Modular design: From production to assembly, replacing accessories is better and more reasonable
XY motor: three electric drive, powerful, faster, more stable, more silent.
Light fixture materials: use national standard die-cast aluminum and die-cast Mg alloy high-end material casings! There is no plastic, and it can be used in harsh outdoor environments such as rain, high altitude, large wind sand, the seaside, cold and hot.
Waterproofing Level: Withstand 360 ° waves without dead angle, truly achieve waterproofing level ip66
Control mode: DMX512, self-walking, master-slave self-walking
Prisms: 8 Prisms can rotate, macro function
Lamp body size: 705 * 375 * 300 mm
Net weight: 25KG
Package size: 750 * 440 * 460 mm
Gross weight: 27KG

IP65 19x40W Bee Eye Zoom Wash Moving Head

This IP65 moving head fixture features 19 × 40W RGBW LEDs with a wide 4.5°–40° zoom range, delivering both high-intensity beam output and smooth wash effects. With advanced pixel control and built-in macro effects such as vortex, kaleidoscope, and waist-style patterns, it provides strong visual creativity for stage and event applications. The fixture supports RGBW color mixing, 2500K–9000K color temperature adjustment, and linear electronic focus, ensuring flexible performance from sharp beam to soft wash. With DMX, Art-Net, sound active, and standalone modes, it is designed for concerts, touring shows, TV productions, and architectural lighting projects requiring dynamic and reliable lighting effects. Fan heat dissipation and temperature automatic detection function, the system will automatically stop working to protect the lamp when the temperature is too high

Light source：19 high brightness LED beads of 40 watts (four in one RGBW)
Color temperature：2500-9000K
Average life：≥50000 hours
Zoom range：4.5°~40°
Horizontal Scanning：540°
Horizontal vertical：250°
Control mode: Pixel control, preset multiple macro effects,with vortex, kaleidoscope, and waist effects
Color system：RGBW color mixing
Focus： linear electronic focus
Strobe：0~20Hz, optional random strobe and pulse strobe
Dimming：0-100% linear adjustment
Control mode：Artnet/DMX/Artnet+DMX/self walk 1 /self walk 2/sound control
Channel mode：21CH/23CH/35CH/78CH/92CH/97CH/99CH
Display：Touch control interface, which can remotely control the bulb switch function and display fan speed and bulb usage time
Voltage：AC90~240V，50/60Hz
Power connection：waterproof power input
Signal connection：three-core or five-core waterproof XLR plug
Input Power：760W，PF≥0.95
Environmental temperature：-20℃~45℃
Size：65*37*54cm
N.W.：17.5kg
Shell : aluminum plate + plastic shell + tempered glass
Cooling system: fan cooling + radiator, full temperature monitoring, automatic over-temperature protection
IP rating：IP65

IP550 Super Beam CMY

This IP66 moving head beam fixture is equipped with a Ushio 520W long-life HID lamp, delivering extremely high output with a narrow 1.5° beam angle and up to 355,000 lux at 15m. Designed for long-throw applications, it provides strong aerial effects for concerts, large-scale events, and outdoor installations. The fixture features 16-bit precision pan (540°) and tilt (270°), a comprehensive color and gobo system, multiple prism effects, and motorized focus for flexible beam shaping. With DMX512, RDM, and multiple control modes, it offers stable and reliable performance for professional touring and stage lighting environments.

Optics:
Light Source: Ushio 520W Long-Life Professional Stage HID Light
Color Temperature: 7000K
Output Aperture: 200mm
Illuminance: 355000Lux@15m Distance
Light Source Lifespan: 3000 hours (data provided by the light source manufacturer)
Beam Angle: 1.5°
Effect:
Horizontal Scan: 540°, magnetoelectric positioning, 16-bit precision scanning
Vertical Scan: 270°, magnetoelectric positioning, 16-bit precision scanning
Color System: 1 color wheel, 14 colors plus white light
Gobo System: 1 fixed gobo disc, 17 gobos plus white circles
Focusing: Motorized focusing
Fog: Independent fogging、
Strobe: 0-20Hz, selectable random strobe and pulse strobe
Dimming: 0-100% strobe plate dimming
Prism: 1 x 6-row prism, 1 x 8+16 double-layer prism, 1 x 8 prism, bidirectional rotating and stackable
Control:
Control Method: DMX512, RDM，master-slave, voice control，manual adjustment
Channels: 24/27CH
Display：Touch control interface, which can remotely control the bulb switch
function and display fan speed and bulb usage time
Power supply:
Input voltage and frequency: 90~240V, 50/60Hz
Power Connection: Waterproof Seetronic power input/output socket
Signal Connection: Three-pin waterproof Seetronic signal input/output socket
Total Power: 650W
Power factor: 0.95
Operating Environment: -20℃～45℃
Physical characteristics:
Size:41.5*24.1*74.5CM
Weight：30kg
Casing: Magnesium-aluminum alloy casing, lightweight, high temperature resistant, salt spray resistant, corrosion resistant
Cooling System: Copper pipe heat conduction + waterproof silent fan
Protection Rating: IP66
Standard configuration: folding integrated hook, power cable 1PC, DMX cable 1PC, safety rope 1PC

IP66 LED600W BWS CMY

This IP66 moving head fixture features a 600W high-power LED module with CMY color mixing and a 4°–36° motorized zoom, delivering strong beam performance and flexible wash effects for professional stage and outdoor applications. It includes a complete optical system with fixed and rotating gobo wheels, dual prism effects, motorized focus, and an independent fog lens, providing rich projection and aerial effects. With 16-bit pan/tilt movement, flicker-free dimming, and 0–20Hz strobe, the fixture ensures smooth and stable performance. Supporting DMX512, RDM, sound active, and standalone modes, it is designed for concerts, touring productions, and large-scale installations requiring reliable output and versatile beam shaping.

Light source: 600WLED module, Light source life: ≥20000 hours
Color temperature: 8000K
Light output diameter: 138mm
Illuminance: 28000Lux@10m (4°)
Zoom range: 4-36 degrees
Horizontal scanning: 540°, using advanced magneto-electric positioning system, 16-bit scanning
Vertical scanning: 270°, using advanced magneto-electric positioning system, 16-bit scanning
Color system: 1 color wheel, 8 colors
Color mixing system: CMY infinite color mixing
CTO color temperature: 3200-8000K adjustable
Fixed gobo: 1 fixed gobo plate, 11 gobos
Rotating gobo: 1 rotatable gobo plate, 8 pluggable gobos
Prism: 1 8-prism, 1 6-row mirror, can be superimposed and rotated independently
Focus: electric focus
Fog: independent fogging lens, light transmittance greater than 90%
Frequency Flash: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, voice control, RDM
Channel: 23CH
Display: touch control interface, display temperature, lamp brightness
Input voltage: AC90-240V, 50/60 Hz
Power connection: waterproof power connector input/output
Signal connection: three-core or five-core waterproof XLR socket
Total power:650W, Power factor: 0.85
Working environment: -20℃～45℃
Dimensions: 41.5*24*70.6cm
Net weight: 23kg
Shell: magnesium alloy shell, black outdoor paint
Cooling system: air cooling + die-cast magnesium alloy, full temperature monitoring, automatic over-temperature protection
Protection level: IP66

IP65 Rattlesnake RGBW Moving Head

The IP65 Rattlesnake RGBW Moving Head is an 800W outdoor fixture combining a 10×60W RGBW main light source with dedicated cool-white, warm-white, and RGB LED sections. Its 2.8–31° beam zoom and 5–46° spot zoom provide flexible coverage, while RGBW+CW+WW color mixing enables precise color and CCT control from 2700–8000K. With IP65 protection, RDM, and optional Art-Net/sACN, it is built for concerts, festivals, touring, and outdoor productions.

Light source：10*60W RGBW LED，96*3W CW LED，
96*3W WW LED ，96*0.5W RGB LED
Color temperature：2700K～8000K
Average life：≥20000 hours
Illuminance：24000 Lux@3m（3°）
Beam angle：2.8°-31°
Spot angle：5°-46°
Y-axis movement angle：202°
Total light output：60000 lm (instantaneous flicker)
Color rendering index：WW: ≥90
Color：RGBW+CW+WW mixed color
Strobe：0~20Hz, optional random strobe and pulse strobe
Dimming：0-100% linear adjustment
Control mode：DMX512 、RDM 、(Art-Net 、sACN Optional）
Channel mode：17/27/99/108/168/170CH
Voltage：AC90~240V，50/60Hz
Power connection: 3pin waterproof docking power cable
Signal connection: 3pin waterproof docking DMX cable
Input Power：800W，PF≥0.95
Environmental temperature：-20℃~45℃
Size：52*20*28cm
N.W.：31.3kg
Shell：Die-cast aluminum + high-strength tempered glass
Cooling system：Low-noise fan forced ventilation
IP rating：IP65

IP65 Color Strike V

The 1000W IP65 RGBW Pixel Wash Moving Head combines a 24×40W main LED matrix with 24×6W auxiliary RGBW LEDs for flexible pixel-controlled lighting effects. Both LED sections can be controlled individually, with multiple beam configurations from 12° to 110° and electronic frost options for wider coverage. Supporting DMX512, Art-Net and RDM, it is designed for touring, concerts, festivals, and demanding outdoor productions.

Power Voltage: AC 100-240V,50/60Hz
Power Consumption: 1000W
Light Sources: TX high quality 4in1 RGBW 5060 40W*24pcs +
24pcs*6W RGBW 4in1 LEDs
Pixel matrix: Main LED and Auxiliary LED both can be control individually
CRI: Ra≥80
Color Temperature：2800-8000K
Light source life: 50000 hours
Beam Angle: Main LED 12°
Main LED with E-frost 48°
5
Auxiliary LED 110°
Auxiliary LED with E-frost 106°
Combined 12°
Combined with E-frost 50°
Dimmer: 0-100% linear dimmer
Strobe：0.5-25 times/second and random strobe
Control
DMX Channel: 314/222/29/30/288/240/192/144/144/120/96/72
Protocol: Art-Net, DMX-512, RDM
Display: Illuminated graphic LCD
RDM: Bidirectional communication
Cooling: Temperature controlled, overheating protection
Construction
DMX In/Out socket: Seetronic 3-pin XLR waterproof in/out
Power Socket: Seetronic Waterproof powercon in/out
Art-Net: Seetronic waterproof Art-net in/out
Housing: Die-casting aluminum body housing
PHYSICAL
Protection Rating: IP65
Product Size:404*202*350MM
Weight: 15Kgs
Packing Size Carton: 490*240*420MM
Packing Weight:16.5Kgs

IP65 RGBW Moving Head Strobe

The IP65 RGBW Moving Head Strobe is a high-power outdoor strobe fixture combining 784 RGB LEDs with 392 high-output white LEDs for dynamic color, pixel, and strobe effects. Its 2700–8000K color range, flicker-free 16-bit dimming, and 0.3–25Hz strobe provide flexible visual control. With 220° tilt movement, intelligent positioning, IP65 protection, and DMX512, RDM, and Art-Net support, it is designed for concerts, festivals, touring, and outdoor productions.

Power
Input Voltage: AC 90–240V, 50/60Hz
Power Consumption: 1400W
Power Factor: ≥0.95
Light Source
RGB: 784 × 0.5W LEDs
White: 392 × 3W LEDs
Lifespan: ≥50,000 hours
Color & Effects
RGB + White mixed color system
Color Control: 14-segment RGB / 28-segment white
Color Temperature: 2700K–8000K
Dimming: 0–100% linear (gamma adjustable, flicker-free)
Strobe: 0.3–25 Hz
Movement
Tilt: 220° (16-bit precision)
High-speed silent motor with auto repositioning
Optical electromagnetic positioning system
Control
DMX512 / RDM / Art-Net
Channel modes: 7 / 8 / 11 / 13 / 24 / 30 / 74 / 97CH
Construction
IP Rating: IP65
Housing: Die-cast aluminum + tempered glass
Cooling: Intelligent temperature-controlled fan system
Physical
Size: 404 × 202 × 350 mm
Net Weight: 15 kg
Gross Weight: 17 kg
Connectivity
Power In/Out (linkable: 230V ×2 units / 120V ×1 unit)
DMX In/Out (up to 30 units daisy chain)
Seetronic waterproof connectors

Dual-Sided Flying Man IP66 Moving Head

The Dual-Sided Flying Man is an 800W outdoor moving head combining a powerful RGBW beam/wash section with a high-density pixel strobe section. Its 9×60W RGBW LEDs provide adjustable 4–32° zoom, while the pixel-controlled strobe side combines RGB and warm-white LEDs for dynamic visual effects. With IP66 protection, infinite vertical rotation, 540° pan, and RDM control, it is designed for concerts, festivals, touring, and large-scale outdoor productions.

Light source: 9×60W LED RGBW lamp beads (beam dyeing end)
324×0.3W RGB 5050 lamp beads + 288×2W 3030WW lamp beads (pixel strobe end)
Life: ≥20,000 hours
Zoom range: 4-32°
15m illumination: 8000LX (4 degrees)
Horizontal scanning: 540 degrees, using advanced magnetoelectric positioning system, 16-bit scanning
Vertical scanning: infinite rotation, using advanced magnetoelectric positioning system, 16-bit scanning
Color system: uniform RGBW color mixing system, preset multiple macro effects
CTO color temperature: 2500K-8000K adjustable
Flash: 0~20Hz, optional random strobe and pulse strobe
Dimming: 0~100% linear dimming
Control mode: DMX512, self-propelled, sound control, master-slave, RDM
Communication Channel: 16/33/42/CH69/AH69/213CH
Display: Touch control interface, can switch between Chinese and English, display lamp temperature, etc.
Input voltage: AC90-240V, 50/60 Hz
Power connection: Seetronic power socket
Signal connection: Seetronic signal socket
Total power: 800W
Power factor: 0.85
Working environment: -20℃～45℃
Dimensions: 41.5*24*61.3cm
Net weight: 22.5kg
Shell: Magnesium alloy shell, black outdoor paint
Cooling system: Ultra-quiet air cooling + magnesium alloy body
Protection level: IP66

IP65 10pcs 70W waterproof Thousand Hands

This IP65 linear LED fixture combines beam, wash, and pixel oscillation effects in a single design, featuring 10 × 80W RGBW 4-in-1 LED sources with additional golden white and cool white LED arrays for rich color layering and dynamic visual effects. With 32-bit smooth dimming, 1–30 Hz strobe, and multiple DMX channel modes, the fixture provides flexible programming options for professional stage applications. Its rugged IP65-rated metal housing and wide operating temperature range ensure reliable performance for outdoor events, touring productions, and permanent installations.

Voltage: 36V 18A + 24V 15A
Power: 880W
LED beads: 10 sets of 80W four-in-one LED beads, 360 sets of 2016 golden white light LED beads, and 360 sets of 2016 cool white light LED beads
Control mode: DMX/voice control/automatic
Channels: CH29, CH56, CH144, CH216, CH262, CH282
Dimming: 32-bit 0~100% linear dimming
Features: Single-particle oscillation + staining + beam
Operating temperature: -30°C to 50°C
Stroboscopic frequency: 1~30 Hz
Appearance: Metal, Black
Connection method: DMX512 input/output / power input/output.
IP Rating: IP65
Dimensions: 1009*153*331mm
Weight: 28.46 kg

IP67 Outdoor RGBW Strobe Light

This IP67 outdoor strobe light combines high-output RGB color, white light, and fill-light functions in a rugged weatherproof design. Featuring 12-segment RGB and white LED control, it provides dynamic color, strobe, and segmented lighting effects for outdoor events and large-scale productions. With 32-bit smooth dimming, 1–30Hz strobe, and DMX512 control, it delivers flexible programming and reliable performance in demanding outdoor environments.

Voltage: AC100~240V 50/60HZ
Power: 500W
LED Chips: 12-segment - 864 (5050) RGB + 12-segment - 96 (3030) W
Control Method: DMX512, Manual, Automatic, Voice Control
Channels: CH04, CH16, CH48
Dim: 32bit 0~100% Linear Dimming
Features: Strobe + Color Diffuser + Fill Light
Operating Temperature: -30°C~50°C
Strobe Frequency: 1~30HZ
Appearance: Metal, Black
Connection: DMX512 Input/Output / Power Input/Output
IP Rating: IP67

9×20W IP65 RGBW Square PAR Light

This IP65 square PAR light features 9 × 20W RGBW LEDs, delivering balanced color mixing and reliable wash performance for indoor and outdoor applications. With a 2800K–8500K color temperature range, selectable 15°/25°/40° beam angles, and independent 1–30Hz strobe, it provides flexible coverage and dynamic effects. Its high-strength die-cast aluminum housing and compact design make it suitable for outdoor events, stage wash, architectural lighting, and permanent installations.

Input Voltage: AC100-240V, 50/60HZ
Rated Power: 200W
Light Source: 9*20W RGBW
High-Speed Strobe: Independent electronic strobe, 1-30Hz
Color Temperature: 2800K-8500K
Control: DMX512 signal, auto-running, master-slave, voice-activated
Channels: 4/8/8A selectable DMX channels
Linear Dimming: 0-100%
Beam Angle: 15°/25°/40° selectable
Functions: Surface lighting, color blending, strobe
Product Appearance: High-strength die-cast aluminum alloy, streamlined design
Protection Rating: IP65
LED Lifespan: 50,000h
Operating Environment: -20℃-45℃
Net Weight: 4.829KG
Gross Weight: 5KG
Lamp Dimensions: 193×263mm×236mm (L×W×H)

4-Eye COB IP66 PAR Light

This IP66 4-Eye COB PAR light features four 70W dual-CCT COB LEDs, delivering smooth and consistent white-light output from 2700K to 6500K. With selectable 15°/25°/40° lenses, independent dimming and 1–30Hz strobe, it provides flexible wash performance for outdoor stages, events, architectural lighting, and permanent installations. Its integrated die-cast aluminum construction, passive heat dissipation, and low-noise fan cooling provide a practical balance of durability and thermal performance.

Rated Voltage: AC100V-240V, 50/60Hz
LED Light Source: Main light 4 x 70W dual-color temperature COB LEDs
Lifespan: 50,000 hours
Waterproof Rating: IP66
Color: Color Temperature: 2700K-6500K
Control: Master/Slave DMX512 RDM function
Channels: 2/4/8/12 channels, default 12 channels (for digital display)
Power Supply: 38V-12 250W power supply
Total Power: 300W
Lens: 15/25/40 degrees selectable, acrylic material
Features:
@ Aluminum profile with self-heating, good thermal conductivity, silent 12V fan
@ Single handle, self-supporting, can be hung Can be spliced horizontally, vertically, and horizontally.
@Integrated die-cast design
@Independent electronic linear dimming 0~100%
@Independent electronic strobe 1-30Hz, can perform random strobe, pulse strobe, synchronous/asynchronous strobe
Dimensions: Net weight: 4.7KG Gross weight: 5KG

Stage Effect Light Series

4-Eye COB PAR Light

This compact 4-eye COB PAR light combines four 50W LED sources with adjustable color temperature and selectable beam angles for flexible stage wash applications. Featuring two cool white and two warm white LEDs, it provides smooth 3200K–6500K white-light adjustment and optional pure white, warm white, and dual-CCT output. With 16-bit dimming, 40°/60° beam options, and DMX512 control, it is suitable for stage wash, events, studios, clubs, and indoor installations.

Input Voltage: AC 200V-240V 50/60Hz
Light Source: 4 x 50W LEDs, 2 x cool white and 2 x warm white
Rated Lifespan: 50,000 hours
Color Temperature: 3200K-6500K linear adjustment
Angle: Selectable angle: 40°/60°
RGBW linear color mixing, built-in macro function.
Dimming Accuracy: 16-bit dimming engine
Control Method: DMX512 control/Manual mode
Menu Display: LCD display + 4 shortcut keys
Dissipation Method: Intelligent fan cooling
Light Spot Effect: Pure white/Warm white/Dual color temperature (optional)
Protection Rating: IP20
Power: 230W
Power Interface: daisy-chain power cord
Signal Interface: 3-pin XLR signal socket (input/output)
Control Channels: 8CH
Transmission Protocol: DMX512
Display Method: LED digital tube display
Flicker: 1-25Hz rapid flicker, with pulse flicker and synchronous/asynchronous flicker effects.
Dim Adjustment: 0-100% linear electronic adjustment
Lamp Body Structure: Die-cast aluminum alloy shell
Product Dimensions: 320×210×210mm
Product Weight: 3kg

54-LED 3-in-1 RGB PAR Light

This compact 54-LED 3-in-1 RGB PAR light is designed for flexible stage wash and color lighting applications. It features smooth 3200K–7200K color temperature adjustment, linear RGBW color mixing, and 16-bit dimming for precise light control. With selectable 40°/60° beam angles, built-in color macros, and DMX512/manual operation, it provides practical and reliable performance for stages, events, clubs, and indoor installations.

Input Voltage: AC 200V-240V 50/60Hz
Light Source: 54 LEDs in 3-in-1
Rated Lifespan: 50,000 hours
Color Temperature: 3200K-7200K linearly adjustable
Angle: 25° selectable angle: 40°/60°
RGBW linear color mixing, built-in macro function.
Dimming Accuracy: 16-bit dimming engine
Control Method: DMX512 control/manual mode
Menu Display: LCD display + 4 shortcut keys
Dissipation Method: Intelligent fan cooling
Light Spot Effect: Can mix various colors
Protection Rating: IP20
Power: 230W
Power Interface: daisy-chain power cord
Signal Interface: 3-pin XLR signal socket (input/output)
Control Channels: 8CH
Transmission Protocol: DMX512
Display Method: LED digital tube display
Flicker: 1-25Hz rapid flicker, with pulse flicker and synchronous/asynchronous flicker effects.
Dim Adjustment: 0-100% linear electronic adjustment
Lamp Body Structure: Die-cast aluminum alloy shell
Product Dimensions: 320×210×210mm
Product Weight: 3kg

120×3W 4-in-1 RGBW PAR Light

This professional 120 × 3W RGBW PAR light delivers balanced color output through 30 red, 30 green, 30 blue, and 30 white LEDs. With adjustable 3200K–6500K color temperature and selectable 15°/25° beam angles, it provides flexible wash coverage for stage, events, clubs, and entertainment applications. Supporting DMX512, master-slave, sound-active, and automatic modes, the fixture offers straightforward control and reliable performance in a durable aluminum housing.

Voltage: AC100V-240V, 50Hz-60Hz
Power: 400W
Light Source: 120 3W high-brightness LEDs (R:30 G:30 B:30 W:30)
Color Temperature: 3200K-6500K adjustable
Light Source Lifespan: 100,000 hours
Beam Angle: 15°/25° selectable
Control Modes: International standard DMX512, Master-Slave, Voice-activated, Auto-running
Channels: 8CH
Content Material: Aluminum
Protection Rating: IP20

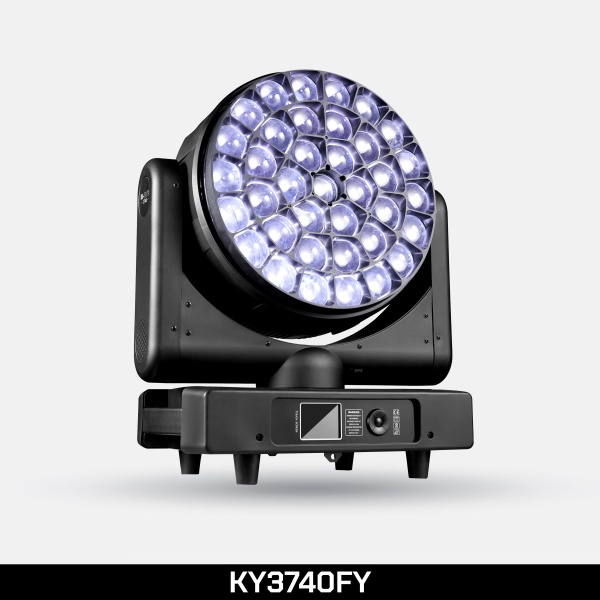

37×40W Bee Eye RGBW Moving Head

The 37×40W Bee Eye RGBW Moving Head is a high-output pixel-controlled fixture designed for large-scale stage, concert, and event applications. Its 37 individually controllable RGBW LED sources deliver powerful beam and uniform wash effects, with a 10°–30° linear zoom and 360° infinite lens rotation for dynamic optical effects. The fixture also supports advanced color mixing, adjustable CCT, multiple dimming curves, macro effects, and RDM for flexible professional control.

nput power: AC100-240V 50/60Hz
Power consumption: 1560W (max)
Light source: 37 x 40W RGBW LED
Average lifespan: 50,000 hours
Control mode: DMX512, RDM, master-slave mode, sound mode
Channel mode: 22/35/36/133/147/170CH
Movement: Translation/Tilt: 540° on the X axis, 270° on the Y axis
Optical system: high-precision integrated structural lens, high-transmittance quartz glass rod PMMA lens
Zoom angle: 10-30 degrees
Beam: A prominent small-angle beam effect
Wash: Spread evenly at medium to large angles
Color: RGBW color mixing system, uniform color mixing without flicker, fast color rainbow effect
Adjustable color temperature: 2500-10000K
Effect Macros: Static effect macros and dynamic effect macros
Strobe: 1K-25Hz
Dimming: electronic dimming, four dimming curves, two dimming modes
Zoom system: Linear power zoom
Lens rotation: The optical lens has 360° infinite rotation, automatic error correction function, variable kaleidoscope, small waist and other effects
Single point control: The light source supports individual independent control and color transformation
Display: 2.80 inch LCD screen
Intelligent control: The temperature of the equipment can be queried through the light menu, equipment usage and lighting time
Channel data and software version failure information
Temperature control: Intelligent temperature control, which can automatically adjust the cooling fan speed and overheating protection, and three fan modes
Software upgrade: Upload the upgrade file via DMX
Shell Material: Fireproof plastic
IP20
Net weight: 24.7 kg
Gross weight: 30.7KG

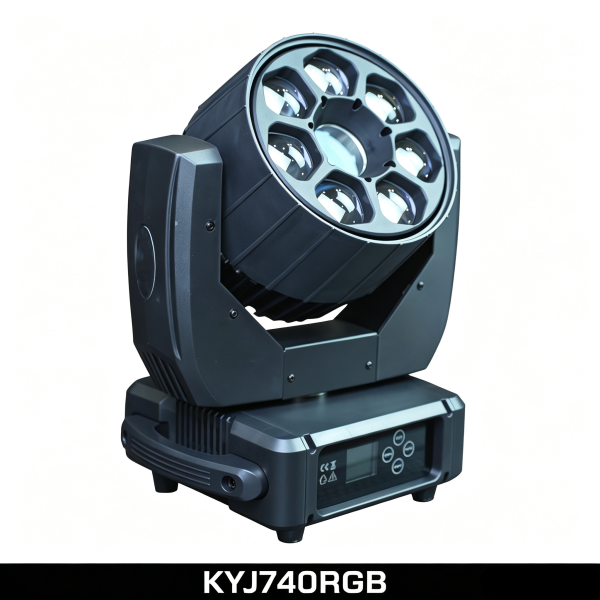

7×40W Honeycomb Laser Moving Head

This 7-head moving fixture combines RGBW wash and beam effects with an integrated 8W full-color RGB laser, providing multiple lighting effects in one compact unit. Each LED source can be individually controlled, while the infinitely rotating front lens creates dynamic visual movement. With a 4.5°–45° zoom, built-in vortex and kaleidoscope effects, and 20Kpps laser scanning, it delivers flexible beam, pixel, and animated laser effects for clubs, concerts, events, and entertainment venues.

Technical specificationsPower supply: AC100V-240V 50-60HzMaximum power: 450WLight source: 7 40W four-in-one lamp beadsLaser light source: 8WRGB full-color laserGalvanometer: 20kppsGalvanometer angle: ±20°Lamp life: 50000HDisplay: Color screenZoom angle: 4.5°-45°Control mode: DMX512, voice control, self-propelledSize: 204mm*290mm*359mmSingle unit net weight: 10.5KgFunctional effects: dyeing, beam, effect mode (vortex, kaleidoscope), animated laser effectThe front mirror can rotate infinitely, the lamp bead is controlled by a single point, and the animation laser can output laser effects such as points, lines and surfaces

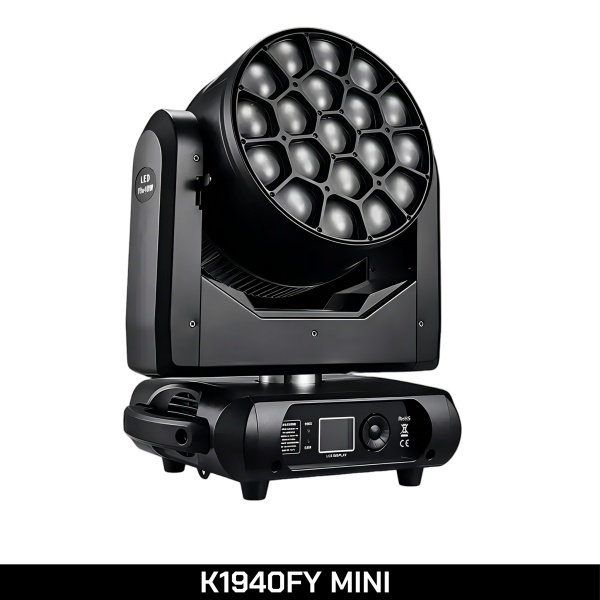

BIG EYE 4019

This 19 × 40W RGBW LED moving head fixture is designed for professional stage and touring applications, delivering a versatile combination of wash, beam, and graphic effects in a single unit. It features a 4°–60° motorized zoom, individual LED control, and advanced built-in effects such as vortex and kaleidoscope, providing strong creative flexibility for lighting designers. With RGBW/CMY color modes, 4 dimming curves, 1–25 Hz strobe, and 540°/270° pan-tilt movement, the fixture ensures smooth operation and dynamic visual performance. Its rotating front lens and powerful effect engine make it suitable for concerts, events, and entertainment venues requiring rich, expressive lighting output.

Power supply
AC110-240V 50/60 Hz
Power consumption: 800W
Light source
19*40W RGBW 4 in1 Osram LEDs
Individual LED control
Average life: 50,000 hrs
Color temperature：2500K-8000K
Effect
Zoom angle: 4-60°
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
2 color mode（RGBW / CMY)
Strobe: 1-25 hz, random and pulse flash
Control
Pan/Tilt: 540/270°
Control mode: DMX512
DMX channels: 21/35/78/92/97
Powercon in and out,XLR in & out: 3-pin
Size:46.3x33.3x46.2cm
Net weight: 20.35kg

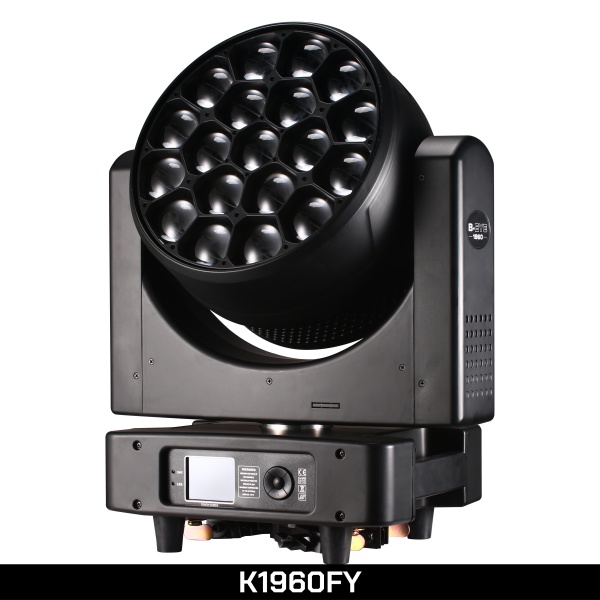

BIG EYE 6019

This 19 × 60W RGBW LED moving head fixture is designed for professional stage and touring use, combining beam, wash, graphic, and special effects in one high-output unit. It features a 4°–60° motorized zoom, individual LED control, and dynamic effects such as vortex and kaleidoscope, providing strong flexibility for creative lighting design. With RGBW/CMY color modes, 2500K–8000K color temperature range, 4 dimming curves, and 1–25 Hz strobe, the fixture delivers smooth color performance and dynamic visual impact. The rotating front lens and multi-effect engine make it suitable for concerts, events, and large-scale entertainment productions.

Effect
Zoom angle: 4-60°
Wash/Beam/Graphic/Effects function
Front lens can rotated infinity
With“vortex”and “kaleidoscope” effects
Variable built-in dynamic effects
4 Liner dimming curves
2 color mode（RGBW / CMY)
Strobe: 1-25 hz, random and pulse flas
Light source
19*60W RGBW 4 in1 Osram LEDs
Individual LED control
Average life: 50,000 hrs
Color temperature：
Power supply
AC110-240V 50/60 Hz
Power consumption: 1200W
2500K-8000K
h
Control
Pan/Tilt: 540/270°
Control mode: DMX512
DMX channels: 21/35/78/92/97
Powercon in and out,XLR in & out: 3-pin
Size:46.3x33.3x46.2cm
Net weight: 20.35kg

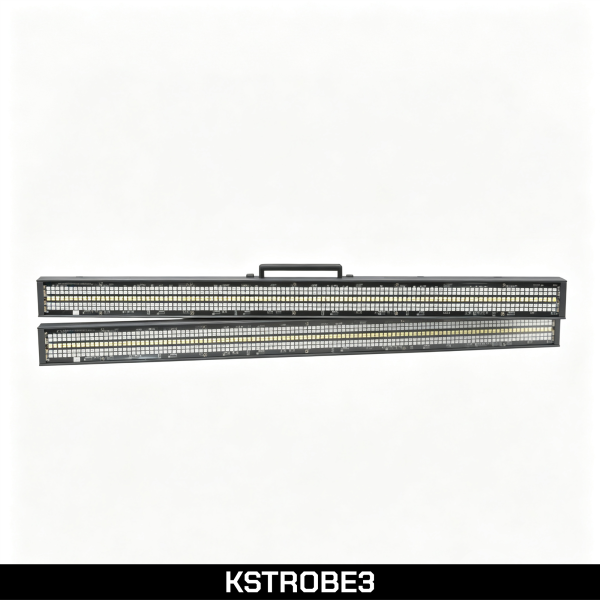

Linear Array Pixel Strobe

The Linear Array Pixel Strobe combines high-density white and RGB LEDs in a slim bar-style fixture for dynamic strobe and pixel effects. Its 240 white LEDs and 480 RGB LEDs provide flexible color and flash effects, while 16-bit dimming ensures smooth output control. With DMX512, RDM, and multiple control modes, it is suitable for concerts, clubs, stages, touring productions, and event applications.

Voltage: AC100~240V 50/60HZ
Power: 250W
LEDs: 240pcs 0.5W 5050 LEDs, 480pcs 0.3W RGB LEDs
Control mode: DMX512, auto-propelled, master-slave, voice-controlled, with RDM function
Channels: CH4, CH16, CH88, CH168
Dimming: 16bit 0~100% linear dimming
Features: Horse Running Flash
Operating temperature: -30 degrees~50 degrees
Strobe frequency: 1~30HZ
Appearance: Metallic, black
Connection: DMX512 input and output
/ Power input and output.
IP Rating: IP20

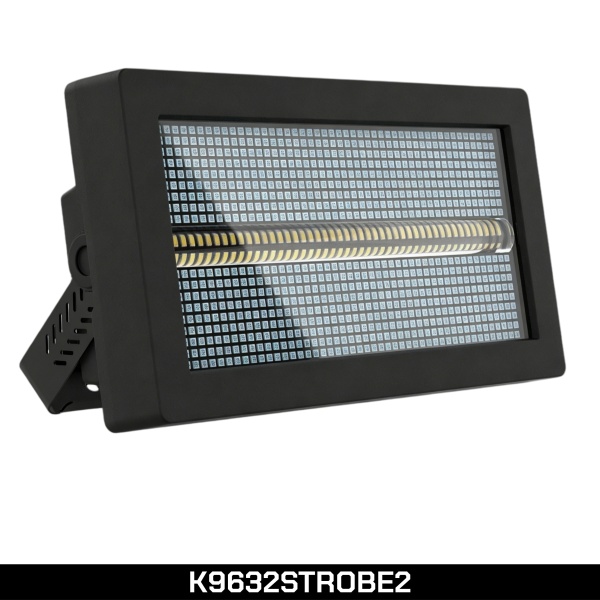

High-power colorful strobe (96-segment + 32-segment)

This compact LED fixture combines RGB wash and white strobe effects in a lightweight design, making it suitable for stage, club, and entertainment applications. It features 864 RGB LEDs and 256 high-power white LEDs, delivering strong color mixing and high-brightness output in a small form factor. With 32-bit smooth dimming, 1–30 Hz strobe, multiple DMX channel modes, and support for DMX512, RDM, master-slave, and sound control, the fixture offers flexible operation and stable performance. Its metal housing and compact structure make it suitable for portable setups and indoor installations requiring dynamic lighting effects.

Voltage: AC100~240V 50/60HZ
Power: 500W (RGB: 200W, W: 300W)
LEDs: 864pcs 5050 RGB 0.5 watts, 256pcs 3030 white5 watts
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channels: CH04, CH17, CH145
Dimming: 32bit 0~100% linear dimming
Features: 96-band RGB 32-band W dyeing flash
Operating temperature: -30°C~60°C
Strobe frequency: 1~30HZ
Appearance: Metallic, black
Connection: DMX512 input and output / power input and output.
IP Rating: IP20
SIZE: 42*22*20CM
WEIGHT: 4.5KG

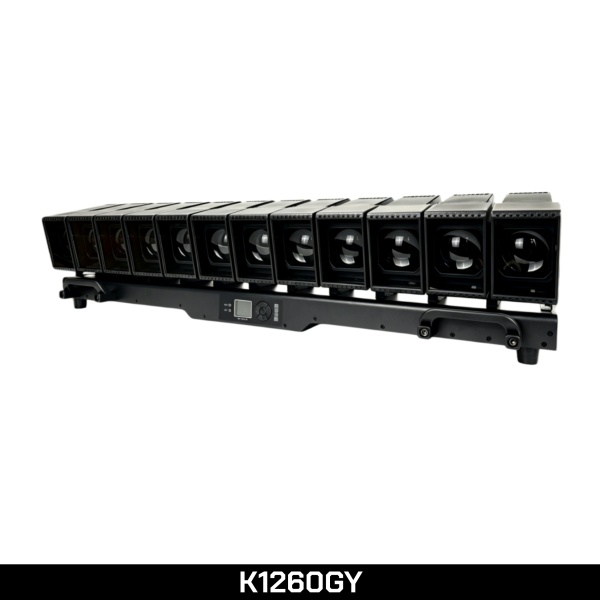

1260-watt thousand-hand Guanyin

This 12 × 60W LED moving fixture is designed for indoor stage applications, combining beam, wash (strobe/staining), and pixel-style effects in a single unit. It delivers strong output with flexible visual performance, suitable for concerts, clubs, and entertainment venues. With 32-bit smooth dimming, 1–30 Hz strobe, multiple DMX channel modes, and support for DMX512, RDM, master-slave, and sound-active control, the fixture offers stable operation and flexible programming. Its metal housing and compact linear design make it suitable for fixed installations and rental use in indoor environments.

Voltage: AC100~240V 50 / 60 HZ
Power: 12 * 60W (800W)
Beads: 124-160 watt LED beads
Control mode: DMX512, self-travel, master-slave, voice control, with RDM function.
channel:CH20.CH169A.CH169B.CH53.CH101.CH155.CH179
Dimming: 32bit 0~100% Linear dimming
Features: single swing + staining + beam
Operating temperature: -30 degrees ~50 degrees
Floribe frequency: 1-30 HZ
Appearance: metal, black
Connection mode: DMX512 input / output / power input / output.
IP grade: IP20
Dimensions: 1000 * 300 * 165MM

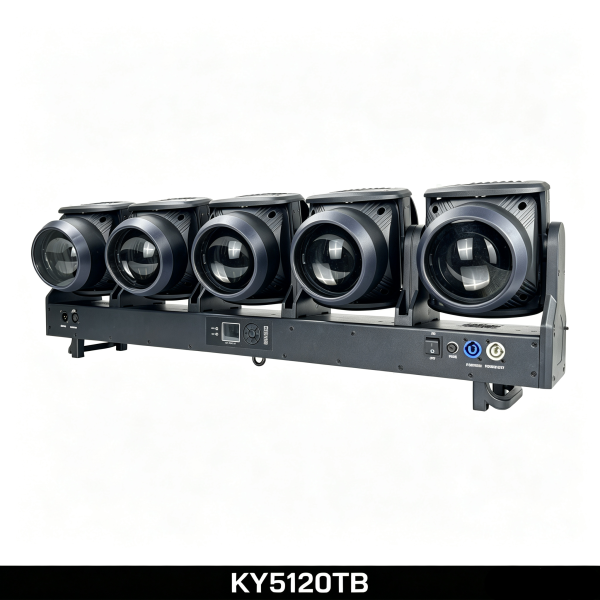

Tornado 5×120W RGB LED Moving Head

This compact LED fixture combines beam, wash, and pixel effects in a single design, featuring 5 × 120W RGB Lemon Yellow LEDs with 120 RGB fill LEDs for layered color effects and dynamic visual performance. With 32-bit smooth dimming, 1–30 Hz strobe, individual lighting effects, and DMX512/RDM control, it offers flexible programming for professional stage applications. Its metal housing and wide -30°C to 50°C operating range make it suitable for concerts, events, clubs, and other indoor entertainment environments.

Voltage: AC100~240V 50/60HZ
Power: 800W
LEDs: 5pcs 120W RGB lemon yellow (1212 LEDs) + 120pcs 0.5RGB fill light
Control mode: DMX512, self-propelled, master-slave, voice control, with RDM function.
Channels: CH31, CH41, CH71, CH51, CH79,
Dimming: 32bit 0~100% linear dimming
Features: Single Swing + Dyeing + Beam
Operating temperature: -30°C~50°C
Strobe frequency: 1~30HZ
Appearance: Metallic, black
Connection: DMX512 input and output / power input and output.
IP Rating: IP20
Size: 1000*355*184cm
Weight: 23.26kg

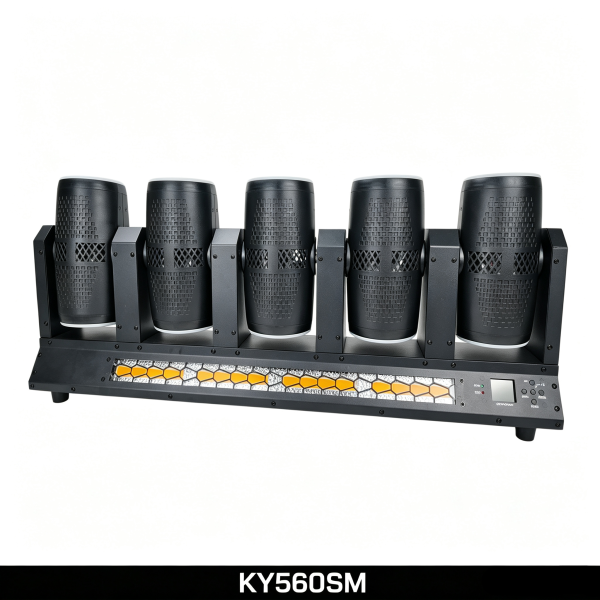

5×60W Dual-Sided Twin-Bar Moving Head

This dual-sided moving head features 10 × 60W RGBW LEDs, 8 × 15W golden yellow LEDs, and 200 × 0.2W RGB LEDs for layered beam, wash, and pixel effects. Each head provides 270° continuous tilt rotation, while individual head control allows flexible programming and dynamic movement. A 4°–60° zoom, independent RGB halo rings, and built-in pixel effects add versatility for creative lighting designs. Designed with intelligent temperature control and low-noise cooling, it is well suited for clubs, concerts, events, and indoor entertainment venues.

Voltage: AC100-240V, 50/60Hz
Power: 650W
Light source: 10 x 60W RGBW LEDs, 8 x 15W golden yellow LEDs, 200 x 0.2W 5050 LED strips
Outer Ring Halo: Each head features an independent RGB ambient light ring with color-changing capability
Lifespan: ≥50,000 H
Cooling System: Convection heat dissipation, air-cooled, intelligent temperature control protection
Lens: Unique high-definition focusing lens for sharp beam quality
Zoom angle: 4-60°
Flicker Rate: 0–25 times per second
Dimming : 0-100% smooth dimming
Vertical (TILT): 270° high-speed continuous rotation
Horizontal: Fixed base with individual head rotation
Operating Modes: DMX512 signal / Master-Slave / Auto-run / Sound-activated
Control Mode: Industry-standard DMX512 (supports RDM for remote address adjustment)
Channel Options: 34CH / 49CH / 69CH multi-channel selection available
Operation Panel: LCD display with bilingual Chinese-English menu and button controls
Enclosure: Thick cold-rolled steel structure, black powder-coated finish, IP20 rated for indoor use
Key Features:
1. Dual-sided bidirectional illumination enables simultaneous front and back field lighting, creating powerful spatial ambiance
2. Bottom honeycomb matrix strip supports standalone strobe, running water, and pixel chase effects
3. Individual heads can be independently zoned and controlled, offering high programming flexibility
4. Low-noise cooling airflow design ideal for long-term continuous operation in nightclubs
5. The halo ring changes color rhythmically with the light, enhancing visual depth and contour definition
size: 925 × 165 × 380 mm （L*W*H）
Net Weight: 20.1 kg

Stage Effects Series

W-26 High-Output Waterproof Particle Fog Generator

The W-26 Particle Fog Generator is a high-output fog machine designed for large-scale stage productions, events, outdoor applications, and special effects. With 1500W power, a 25m spray distance, and smoke output of up to 135m³/min, it provides consistent atmospheric coverage for large spaces. Supporting DMX512 and wireless remote control, the unit combines high-capacity fluid storage with practical output control for professional applications.

Model W-26
Voltage: AC 220V-240V, 50/60 Hz.
Fuse, 15A/250V
Power: 1500W
Preheating time: 14 minutes
Spray distance: 25 meters
Smoke output: 135m³/min
Fuel consumption: approximately 0.1 L/h at 1% output.
Output of approximately 1.1 L/h at 100%.
Gas consumption: 2.0kg/hour
Wireless remote control √
DMX512 √
DMX Channel 2
Oil bottle capacity: 10L
Net weight: 98KG
Gross weight: 138KG
Machine dimensions: 762 * 606 * 965 mm
Package dimensions: 840 * 675 * 1200 mm

W-8IP IP45 High-Output Particle Fog Generator

The W-8IP Particle Fog Generator is a compact high-output fog machine designed for stage productions, events, outdoor applications, and special effects. With 1200W power and a smoke output of up to 25,000 cu ft/min, it delivers fast and consistent atmospheric effects while requiring only around 7 minutes of preheating. Its IP45 water-resistant housing, 3L fluid capacity, and support for DMX512 and wireless control make it practical for professional indoor and outdoor use.

Model: W-8IP
Voltage: AC 220V-240V, 50/60 Hz.
Fuse, 10A/250V
Power: 1200W
Preheat time: 7 minutes.
Smoke output: 25,000 cuft/min.
Fuel consumption: 20 ml/min.
Gas consumption: 2.0kg/hour
Wireless remote control √
DMX512 √
DMX Channel 2
Oil bottle capacity: 3L
Water resistance rating: IP45
Net weight: 27.8 kg
Gross weight: 30.3KG
Machine dimensions: 651 * 360 * 390 mm
Package dimensions: 760 * 460 * 455 mm

W-20IP IP45 High-Output Fog Machine

The W-20IP High-Output Fog Machine is designed for large-scale stage productions, outdoor events, venues, and special-effect applications requiring fast and wide-area fog coverage. With 3200W power, a maximum spray distance of 25m, and smoke output of up to 55,000 cu ft/min, it can cover approximately 1,000㎡ within 5 minutes. Its 20L fluid capacity, IP45 water resistance, DMX512, and wireless control make it well suited for demanding professional applications.

Model: W-20IP
Voltage: AC 220V-240V, 50/60 Hz.
Fuse, 20A/250V
Power: 3200W
Preheat time: 5 minutes.
Maximum spray distance: 25 meters
Maximum output of smoke: 55,000 cuft/min.
Fuel consumption: Fogger mode – 18 minutes per liter.
Range hood mode: 4 minutes/liter
Maximum coverage area: approximately 1,000㎡ (spread within 5 minutes).
Wireless remote control √
DMX512 √
DMX Channel 2
Oil bottle capacity: 20L
Water resistance rating: IP45
Net weight: 50.0KG
Gross weight: 53.0 kg
Machine dimensions: 535 * 456 * 921mm
Package dimensions: 580 * 500 * 950 mm

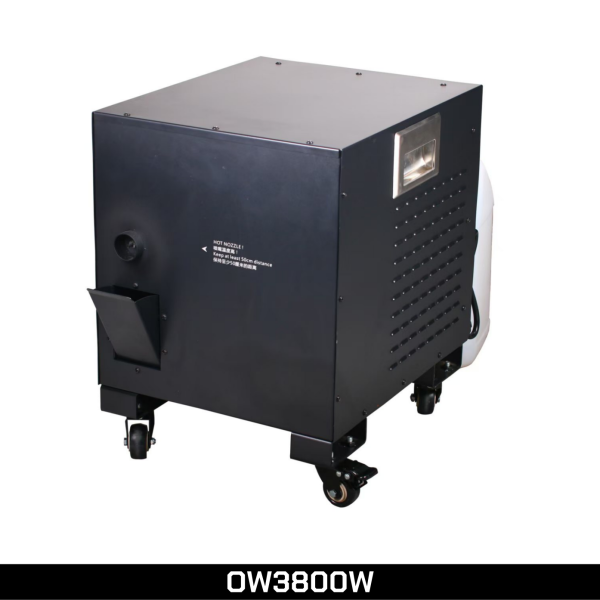

W-25IP IP45 High-Output Fog Machine

The W-25IP High-Output Fog Machine is designed for large-scale stage productions, outdoor events, venues, and special-effect applications requiring dense and wide-area fog coverage. With 3800W power, a maximum spray distance of 25m, and smoke output of up to 55,000 cu ft/min, it can cover approximately 1,000 m² within 5 minutes. Its 20? — Wait, this model has a 10L fluid capacity — plus IP45 water resistance, DMX512, and wireless control, making it suitable for demanding professional applications.

Model: W-25IP
Voltage: AC 220V-240V, 50/60 Hz.
Fuse, 15A/250V
Power: 3800W
Preheat time: 5 minutes.
Maximum spray distance: 25 meters
Maximum output of smoke: 55,000 cuft/min.
fuel consumption
Mist generator mode: 18 minutes per liter.
Smoke extraction mode: 4 minutes per liter.
Maximum coverage area: approximately 1,000 m² (5 minutes of diffusion).
Wireless remote control √
DMX512 √
DMX Channel 2
Oil bottle capacity: 10L
Water resistance rating: IP45
Net weight: 32.3 kg
Gross weight: 35.2KG
Machine dimensions: 505 * 370 * 510 mm
Package dimensions: 635 * 495 * 680 mm

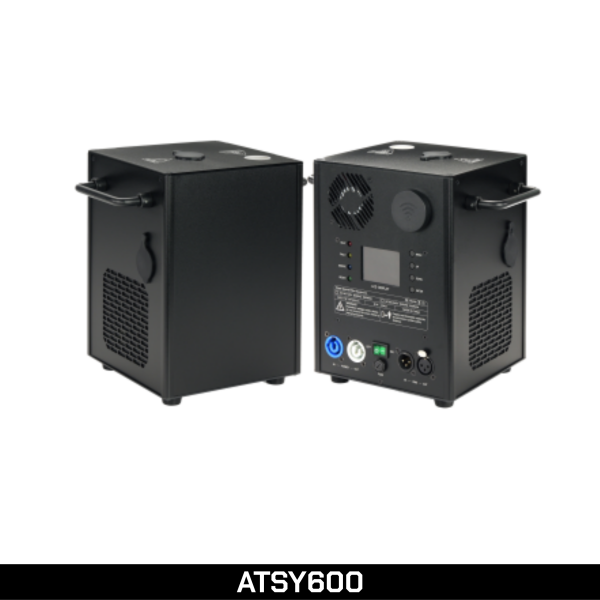

600W Vertical Cold Spark Machine

This 600W vertical cold spark machine is designed to create controlled upward spark effects for stage shows, events, weddings, concerts, and entertainment productions. It offers an adjustable 1–5m spray height with multiple output levels, while DMX512 and wireless remote control provide flexible operation. The compact aluminum housing integrates three motors with automatic material clearing, making the unit practical for repeated professional use.

Total Power: 600 W; Spraying Direction: Vertical upward spraying; Spraying Height: 1–5 m (5-speed control panel, 3-speed remote control); Nozzle Inner Diameter: 22 mm; Heating Method: Resistance heating (approximately 5 minutes); Control Methods: DMX512 and wireless remote control; Housing Material: Aluminum (black oxide); Motor Configuration: 3 motors (with automatic material clearance function); Material Bin Capacity: 250 g; Accessories: 3 m × 1.5 mm flat power cable, 3 m signal cable, 2.4G multifunctional remote controller; Product Dimensions: 200 × 185 × 248 mm; Net Weight: 4.3 kg

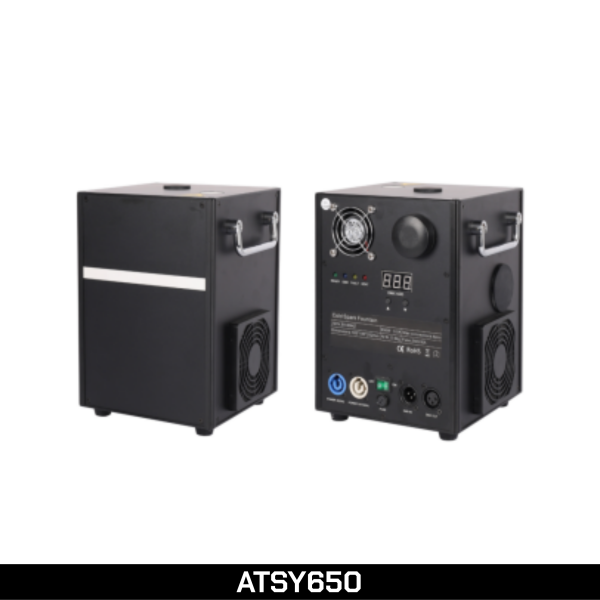

650W Vertical Cold Spark Machine

This 650W vertical cold spark machine is designed for controlled upward spark effects in stage shows, concerts, weddings, events, and entertainment productions. Its electromagnetic heating system reaches operating temperature in approximately 3–5 minutes, with an adjustable 1–5m spray height and multiple output levels. Supporting DMX512 and 2.4G wireless remote control, the unit combines flexible operation with a compact aluminum housing and a three-motor system with automatic material clearing.

Total power: 650W
Spray direction: Vertical upward spray.
Spray height: 1-5 meters (5 settings on the control panel, 3 settings with remote control).
Nozzle inner diameter: 22mm
Heating method: Electromagnetic heating (3-5 minutes)
Control methods: DMX512 and wireless remote control.
Casing material: aluminum (black anodized/white painted).
Motor configuration: 3 motors (independent large AC motors capable of automatically clearing material).
Box capacity: 250g
Accessories: 3-meter 1.5mm power cord, 3-meter signal cable, 2.4G multi-function remote control.
Product dimensions: 205*205*265mm
Product net weight: 5.9 kg
Individual carton packaging: 290*290*300mm, 7.3 kg.
Two boxes per pack: 610*305*320mm, 15 kg.
Pack of 4 aviation cases: 600*510*450mm, 40kg.
6 units packed in an air box: 670*640*450mm, 58 kg.

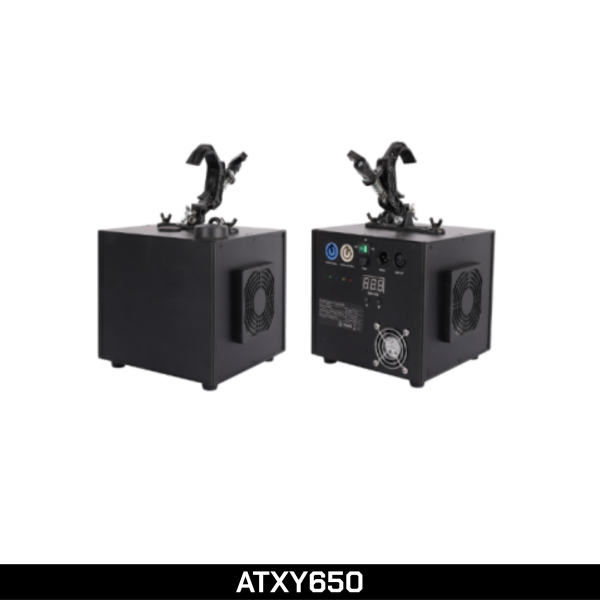

650W Waterfall Cold Spark Machine

This 650W waterfall cold spark machine is designed for downward and cascading spark effects in stage shows, concerts, weddings, events, and entertainment productions. Its electromagnetic heating system reaches operating temperature in approximately 3–5 minutes, while DMX512 and 2.4G wireless control provide flexible operation. Equipped with three independent AC motors and automatic material clearing, the unit offers stable output in a compact aluminum housing.

Nozzle inner diameter: 22mm
Heating method: Electromagnetic heating (3-5 minutes)
Control methods: DMX512 and wireless remote control.
Casing material: aluminum
Motor configuration: 3 motors (independent large AC motors capable of automatically clearing material).
Box capacity: 260g
Accessories: 3-meter 1.5mm power cord, 3-meter signal cable, 2.4G multi-function remote control, lamp hook, safety rope.
Product dimensions: 225*205*225mm (excluding hooks).
Product net weight: 6.2 kg
Individual carton packaging: 290*290*300mm, 7.7 kg.
Two cartons per pack: 610*305*320mm, 16 kg.
Pack of 4 aviation cases: 610*590*375mm, 39kg.

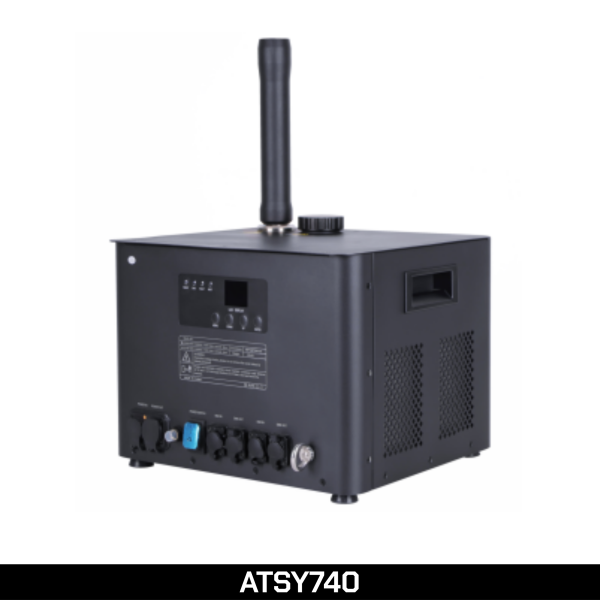

ATSY740 - 740W High-Pressure Burst Cold Spark Machine

This 740W high-pressure burst cold spark machine is designed for powerful, instantaneous upward spark effects, reaching a spray height of 6–10 meters. Its electromagnetic heating system requires approximately 3–5 minutes to reach operating temperature, while two adjustable pressure levels provide flexible output control. With DMX512 control, a durable stainless-steel housing, and a 200g material capacity, it is designed for concerts, large-scale stage shows, and high-impact event productions.

Total power: 740W
Spray direction: Vertical upward spray (instantaneous spray).
Spray height: 6-10 meters.
Heating method: Electromagnetic heating (3-5 minutes)
Control method: DMX512
Pressure setting: Adjustable in 2 levels (25/45).
Casing material: stainless steel.
Water-resistant rating: Not water-resistant (spray nozzles are not water-resistant; the entire device’s casing is lightly water-resistant).
Box capacity: 200g
Accessories: 3-meter power cord, 3-meter signal cord.
Product dimensions: 390*348*296mm
Product net weight: 17.5 kg
Individual carton packaging: 510 × 470 × 410 mm, 21.0 kg (packed in thick honeycomb-patterned carton).
Aircraft case, 2 units per package:

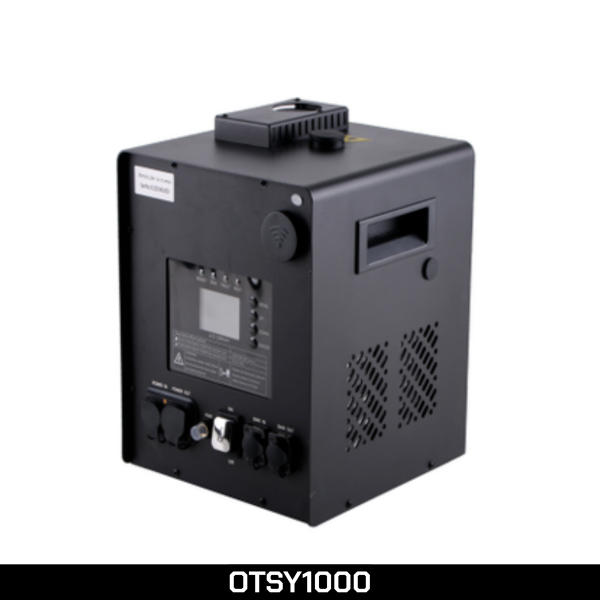

1000W Rainproof Vertical Cold Spark Machine

This 1000W rainproof vertical cold spark machine is designed for controlled upward spark effects in outdoor events, concerts, stage shows, and entertainment productions. Its electromagnetic heating system reaches operating temperature in approximately 3–5 minutes, with an adjustable 2–6m spray height and multiple output levels. Supporting DMX512 and 2.4G wireless control, it combines a three-motor automatic material-clearing system with IPX4 rain protection for reliable outdoor operation.

Total power: 1000W
Spray direction: Vertical upward spray.
Spray height: 2-6 meters (5 settings on the control panel, 3 settings with remote control).
Nozzle inner diameter: 24mm
Heating method: Electromagnetic heating (3-5 minutes)
Control methods: DMX512 and wireless remote control.
Casing material: aluminum
Water resistance rating: IPX4 (protection against rain in outdoor conditions; the machine cannot be submerged in water).
Motor configuration: 3 motors (independent large AC motors capable of automatically clearing material).
Box capacity: 250g
Accessories: 3-meter 1.5mm power cord, 3-meter signal cable, 2.4G wireless remote controller, card-type wrench.
Product dimensions: 250*240*330mm
Product net weight: 9 kg
Individual carton packaging: 350*320*415mm, 11.0 kg.
Carton, two pieces per box: 710**330*425mm, 23.0kg
Four aviation cases per pack: 670*600*520mm, 59.0kg.
6 units packed in an air box: 870*670*520mm, 85.0kg.

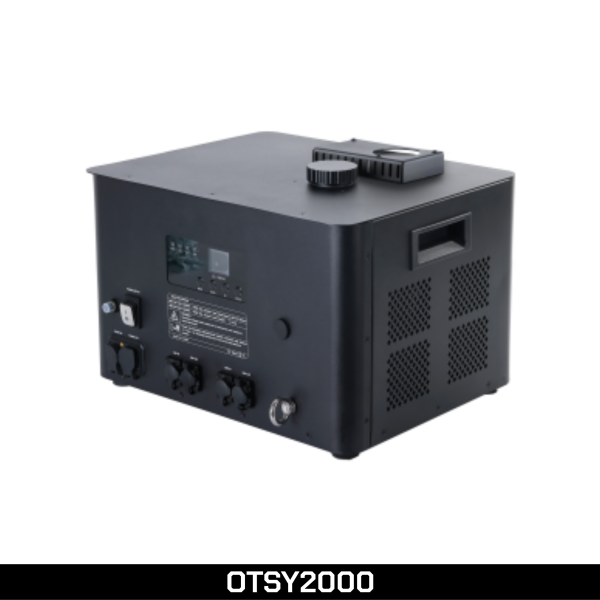

2000W IPX5 High-Altitude Hurricane Cold Spark Machine

This 2000W high-altitude cold spark machine is designed for powerful upward spark effects with a spray height of 5–10m, making it suitable for large-scale concerts, outdoor events, stage shows, and special-effect productions. Its electromagnetic heating system reaches operating temperature in approximately 3–5 minutes, while DMX512 control allows precise integration into show systems. With a stainless-steel housing, three-motor automatic material-clearing system, and IPX5 rain protection, it is built for demanding outdoor applications.

Total power: 2000W
Spray direction: Vertically upward.
Spray height: 5-10 meters (5 settings on the control panel).
Spray nozzle inner diameter: 38 mm
Heating method: electromagnetic heating (3-5 minutes).
Control method: DMX512
Casing material: stainless steel.
Motor configuration: 3 motors (independent large AC motors capable of automatically clearing material).
Box capacity: 500g (requires use of specialized consumables).
Water-resistant rating: Rain-resistant IPX5 (protection against rain in outdoor conditions; the machine cannot be submerged in water).
Accessories: 3-meter waterproof power cord, 3-meter waterproof signal cable, clip tool wrench.
Product dimensions: 460*370*300mm
Product net weight: 23kg
One carton contains: 580*490*410mm, 27.5 kg (packed in an extra-thick honeycomb-patterned carton).
Two aviation cases packed: 860*610*510mm, 68kg.

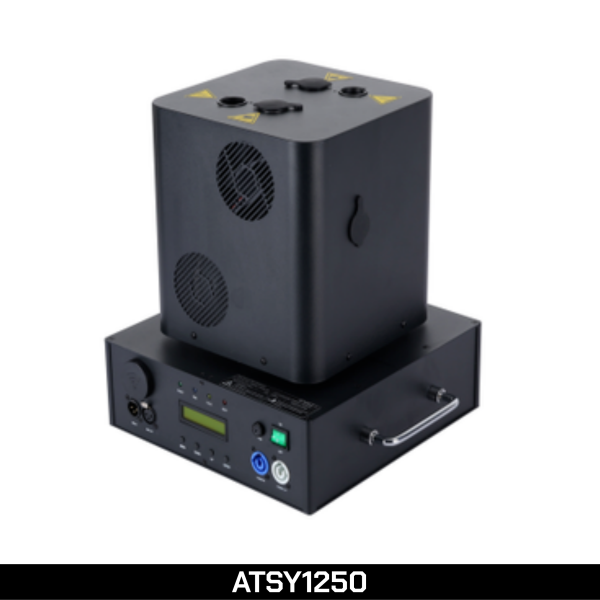

1250W Dual-Head Rotating Cold Spark Machine

This 1250W dual-head rotating cold spark machine features two independently oriented spark outlets with continuous rotation, creating dynamic multi-directional effects for stage shows, concerts, events, and entertainment productions. With an adjustable 1–5m spray height, five-level onboard control, and 2.4G wireless remote operation, it provides flexible effect positioning. The resistance heating system reaches operating temperature in approximately 5 minutes, while DMX512 control allows integration with professional show-control systems.

Total power: 1250W
Spray direction: Dual-hole, infinitely rotating.
Spray height: 1-5 meters (5 settings on the control panel, 3 settings with remote control).
Nozzle inner diameter: 22mm
Heating method: Resistance heating (approximately 5 minutes).
Control methods: DMX512 and wireless remote control.
Casing material: metal.
Motor configuration: 3 motors (with automatic material clearing capability).
Box capacity: 250g × 2
Accessories: 3-meter 1.5mm power cord, 3-meter signal cable, 2.4G multi-function remote control.
Product dimensions: 315*315*370mm (excluding hooks).
Product net weight: 15.5kg
Carton (single unit): 470×390×430 mm, 19.5 kg (thickened honeycomb-pattern carton)
