Professional stage lighting equipment for every application

BEAM KING 380

This 380W moving head beam fixture is designed for indoor stage and entertainment use, delivering strong and focused beam output with a 2° narrow angle optical system. Equipped with a color wheel (14 colors), fixed gobo wheel (13 patterns), and multiple prism effects, it provides versatile aerial and projection effects for professional lighting applications. With 540° pan, 270° tilt, 16-bit precision movement, smooth focus and dimming, and DMX512/RDM control, the fixture ensures stable and responsive performance. Its compact design and reliable optical system make it suitable for clubs, small-to-medium stages, and touring setups where sharp beam effects are required.

• LIGHT SOURCE & OPTIC
• Light source: Ushio 380W (Optional Philip 420W)
• Lifespan: 3500H
• Color temperature: 7800K
• Lens diameter: 152mm
• Beam angle: 2 degrees
• EFFECTS
• Color wheel:14 colors + open
• Gobo Wheel: 13 fixed gobos + open
• Total 4 kinds of prism with rotation in both directions at variable speed
• Strobe: Multiple speed strobe
• Dimming: 0-100% smooth dimming
• Focus: 0-100% smooth focus
• CONTROL & PROGRAM
• 4 touch buttons
• Control: DMX512/RDM
• DMX Channel: 17CH
• POWER SUPPLY
• Input voltage: AC100-240V 50/60Hz
• Consumed Power: 380W
• Power connectors: PowerCon IN/OUT(optional Truecon)
• DMX connectors: 3-Pin XLR IN/OUT (Optional 5Pin)
• MOVEMENT
• Pan: 540 degree / Tilt: 270 degrees
• P/T position: Auto correction
• P/T: 16bit scanning
• BODY
• Rate:IP20
• WEIGHT & SIZE
• NW: 13.2kg(Not including clamps)
• Carton box 1in1:550*390*390mm/15.25KG
• Flight case 2in1:690*400*770mm/54KG
• Fixture size: 316.5*252.6*538.4mm(L*W*H)

ALED BEAM 300

This 230W LED moving head fixture is designed for indoor stage and entertainment applications, offering a balance of beam performance and reliability in a compact design. It features a 12-color wheel with rainbow effects, a 14-pattern gobo wheel with shake and rotation functions, and dual prism effects (8-facet and 24-facet) for versatile visual projection. With 540° pan, 250° tilt, 16-bit precision movement, and smooth linear dimming, the fixture delivers stable and responsive operation for professional lighting setups. Additional protections such as intelligent cooling and lamp life management ensure reliable performance for clubs, events, and touring productions.

• Power: 350W (CE,ISO9000 standard power supply)
• Light source: New 230W white LED module source
• Color temperature: 7500K
• LED life: 50000 hours, low power consumption, energy saving and environmental protection. Pan: 540°(16bit scan) electronic correction
• Tilt: 250° (16bit scan) electronic correction
• Color Wheel: 12 colors + white light, with rotating rainbow effect, a six color wheel, rainbow
• effect
• Gobo wheel: 14 Gobo + white, with rotation and shake
• Strobo: up to 13 times per second, with random,pulse function
• Dimming :0-100% linear
• Prism: Double prism effect, one 24 prism, one 8 prism, 2 prisms can be superimposed Forst:
• 0-100% linear
• Special Function:
• Put off shutter 5 seconds, lamp power auto reduce 35% to extend the lamp life span Fan
• speed lower than 500RPM, lamp off to protect
• IP Class: IP20
• Overheating protection
• N. W: 15KG

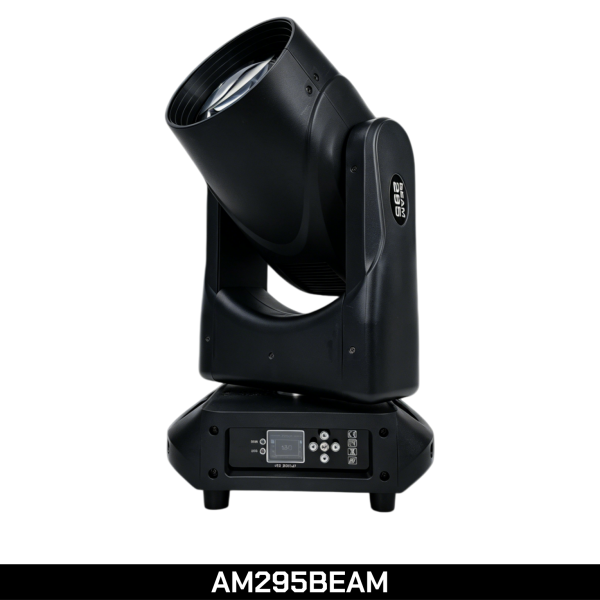

AM295BEAM

This 300W moving head fixture is designed for indoor stage and entertainment applications, offering reliable beam and effect performance in a compact design. It features a 13-color wheel with half-color effects, 9 fixed gobos, and dual prism effects (8-facet and 24-facet), delivering versatile visual projection options for stage lighting. With 540° pan, 270° tilt, DMX512 and RDM control, and multiple operating modes, the fixture provides smooth movement and flexible operation for small to medium-scale events, clubs, and installations where dynamic lighting effects are required.

• Input voltage:AC100-240V, 50/60Hz
• Power:400W
• Light source:300W light
• Lamp life: 400W
• Color 13 colors plus white light, half-color effect, can be arbitrarily positioned
• Fixed pattern: 9 fixed delicate patterns with white light, pattern jitter effect,
• Prism: two Prism(8+24)
• DMX512 channels
• Control mode: International standard DMX 512/random mode / self-walking mode
• X-axis:540degrees
• Y-axis:270 degrees
• With RDM functionality
• Operating temperature:-10C to 45C
• Protection Index: IP20

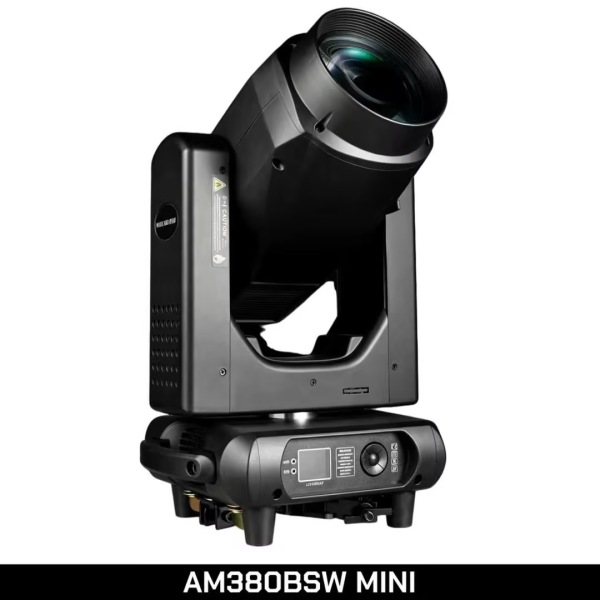

AM380BSW MINI

This professional moving head fixture is equipped with a 371W Osram long-life light source, delivering high-intensity output with a wide 3°–45° zoom range. It features advanced optical performance including precision focus, smooth electronic dimming, and frost diffusion for flexible beam shaping. The fixture integrates a comprehensive effects system with color wheel, fixed and rotating gobos, dual prism systems, and stacked prism effects, enabling rich aerial and projection effects for stage lighting applications. With 16-bit pan/tilt movement and DMX512 control, it ensures stable and precise operation. Designed for indoor stage environments, it is suitable for concerts, clubs, touring productions, and entertainment venues requiring versatile beam and effect performance.

• Light Source
• Light source brand: Osram (4000H long-life platinum lamp)
• Light source power: 371W
• Color temperature: 7000K ±500K
• Power Supply
• Input voltage: AC 100–240V, 50/60Hz
• Rated power: 600W
• Optics
• Zoom range: 3°–45°
• Illuminance: 784,000 lux (6m @ 3°)
• Dimming: 0–100% linear dimming
• Focus: Electronic focus, ultra-smooth adjustment
• Strobe: 1–25 Hz, random + pulse strobe
• Frost: 0–100% soft diffusion
• Effects
• Color wheel: 14 colors + white, half-color effect, bi-directional rainbow rotation
• Fixed gobo wheel: 13 + 1 patterns
• Rotating gobo wheel: 8 interchangeable gobos + white circle, with shake and indexing function
• Effect wheel: 1
• Prism system 1: accepts 2 different prism plates, bi-directional rotation
• Prism system 2: accepts 1 prism + 1 frost plate, bi-directional rotation
• Prism stacking: 16-facet and 80-facet prisms can be combined to achieve up to 96-facet effect
• Control
• Operating modes: DMX mode, master-slave mode
• Protocol: DMX512
• Channel modes: 17CH / 24CH
• Pan: 540° (16-bit precision)
• Tilt: 270° (16-bit precision)
• Physical
• Cooling system: Forced air cooling
• Housing material: Plastic + metal
• Protection rating: IP20
• Dimensions: 350 × 270 × 600 mm
• Weight: 17 kg
• Operating temperature: -25°C to 40°C
